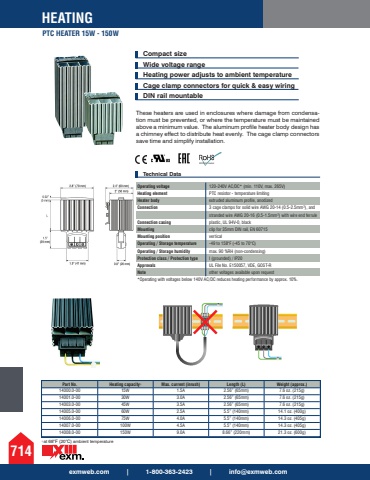

exmweb.com | 1-800-363-2423 | [email protected] HEATER 15W - 150W714Technical DataCompact size Wide voltage range Heating power adjusts to ambient temperature Cage clamp connectors for quick & easy wiring DIN rail mountableThese heaters are used in enclosures where damage from condensation must be prevented, or where the temperature must be maintained above a minimum value. The aluminum profile heater body design has a chimney effect to distribute heat evenly. The cage clamp connectors save time and simplify installation.Operating voltage 120-240V AC/DC* (min. 110V, max. 265V)Heating element PTC resistor - temperature limitingHeater body extruded aluminum profile, anodized Connection 3 cage clamps for solid wire AWG 20-14 (0.5-2.5mm%u00b2), and stranded wire AWG 20-16 (0.5-1.5mm%u00b2) with wire end ferrule Connection casing plastic, UL 94V-0, black Mounting clip for 35mm DIN rail, EN 60715Mounting position verticalOperating / Storage temperature -49 to 158%u00b0F (-45 to 70%u00b0C) Operating / Storage humidity max. 90 %RH (non-condensing)Protection class / Protection type I (grounded) / IP20Approvals UL File No. E150057, VDE, GOST-R Note other voltages available upon request*Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.Part No. Heating capacity1) Max. current (inrush) Length (L) Weight (approx.)14000.0-00 15W 1.5A 2.56%u201d (65mm) 7.6 oz. (215g)14001.0-00 30W 3.0A 2.56%u201d (65mm) 7.6 oz. (215g)14003.0-00 45W 3.5A 2.56%u201d (65mm) 7.6 oz. (215g)14005.0-00 60W 2.5A 5.5%u201d (140mm) 14.1 oz. (400g)14006.0-00 75W 4.0A 5.5%u201d (140mm) 14.3 oz. (405g)14007.0-00 100W 4.5A 5.5%u201d (140mm) 14.3 oz. (405g)14008.0-00 150W 9.0A 8.66%u201d (220mm) 21.3 oz. (600g)1)at 68%u00b0F (20%u00b0C) ambient temperature
