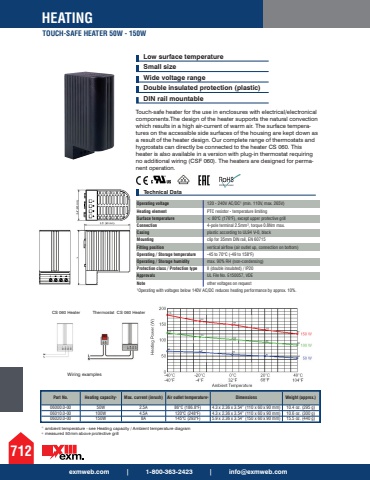

exmweb.com | 1-800-363-2423 | [email protected] HEATER 50W - 150W712Technical DataLow surface temperature Small size Wide voltage range Double insulated protection (plastic) DIN rail mountableTouch-safe heater for the use in enclosures with electrical/electronical components.The design of the heater supports the natural convection which results in a high air-current of warm air. The surface temperatures on the accessible side surfaces of the housing are kept down as a result of the heater design. Our complete range of thermostats and hygrostats can directly be connected to the heater CS 060. This heater is also available in a version with plug-in thermostat requiring no additional wiring (CSF 060). The heaters are designed for permanent operation.Operating voltage 120 - 240V AC/DC%u00b9 (min. 110V, max. 265V)Heating element PTC resistor - temperature limitingSurface temperature < 80%u00b0C (176%u00b0F), except upper protective grillConnection 4-pole terminal 2.5mm%u00b2, torque 0.8Nm max. Casing plastic according to UL94 V-0, blackMounting clip for 35mm DIN rail, EN 60715Fitting position vertical airflow (air outlet up, connection on bottom)Operating / Storage temperature -45 to 70%u00b0C (-49 to 158%u00b0F) Operating / Storage humidity max. 90% RH (non-condensing) Protection class / Protection type II (double insulated) / IP20Approvals UL File No. E150057, VDE Note other voltages on request %u00b9Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.Part No. Heating capacity1) Max. current (inrush) Air outlet temperature2) Dimensions Weight (approx.)06000.0-00 50W 2.5A 86%u00b0C (186.8%u00b0F) 4.3 x 2.36 x 3.54%u201d (110 x 60 x 90 mm) 10.4 oz. (295 g)06010.0-00 100W 4.5A 120%u00b0C (248%u00b0F) 4.3 x 2.36 x 3.54%u201d (110 x 60 x 90 mm) 10.6 oz. (300 g)06020.0-00 150W 8A 145%u00b0C (293%u00b0F) 5.9 x 2.36 x 3.54%u201d (150 x 60 x 90 mm) 15.5 oz. (440 g)Wiring examples1) ambient temperature - see Heating capacity / Ambient temperature diagram 2) measured 50mm above protective grillCS 060 Heater Thermostat CS 060 Heater
