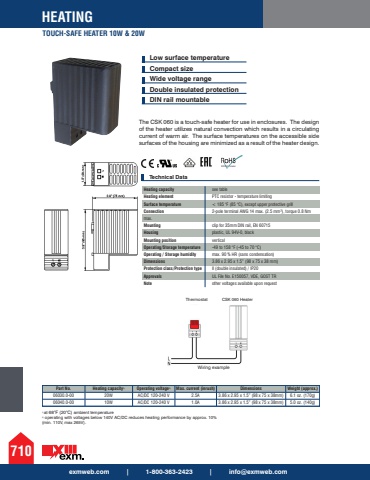

exmweb.com | 1-800-363-2423 | [email protected] HEATER 10W & 20W710Technical DataLow surface temperature Compact size Wide voltage range Double insulated protection DIN rail mountableHeating capacity see tableHeating element PTC resistor - temperature limitingSurface temperature < 185 %u00b0F (85 %u00b0C), except upper protective grill Connection 2-pole terminal AWG 14 max. (2.5 mm%u00b2), torque 0.8 Nm max. Mounting clip for 35mm DIN rail, EN 60715Housing plastic, UL 94V-0, blackMounting position verticalOperating/Storage temperature -49 to 158 %u00b0F (-45 to 70 %u00b0C) Operating / Storage humidity max. 90 % HR (sans condensation)Dimensions 3.86 x 2.95 x 1.5%u201d (98 x 75 x 38 mm) Protection class/Protection type II (double insulated) / IP20 Approvals UL File No. E150057, VDE, GOST TR Note other voltages available upon requestThe CSK 060 is a touch-safe heater for use in enclosures. The design of the heater utilizes natural convection which results in a circulating current of warm air. The surface temperatures on the accessible side surfaces of the housing are minimized as a result of the heater design.Part No. Heating capacity1) Operating voltage2) Max. current (inrush) Dimensions Weight (approx.)06030.0-00 20W AC/DC 120-240 V 2.5A 3.86 x 2.95 x 1.5%u201d (98 x 75 x 38mm) 6.1 oz. (170g)06040.0-00 10W AC/DC 120-240 V 1.0A 3.86 x 2.95 x 1.5%u201d (98 x 75 x 38mm) 5.0 oz. (140g)Wiring exampleThermostat CSK 060 Heater1) at 68%u00b0F (20%u00b0C) ambient temperature 2) operating with voltages below 140V AC/DC reduces heating performance by approx. 10%(min. 110V, max 265V).
