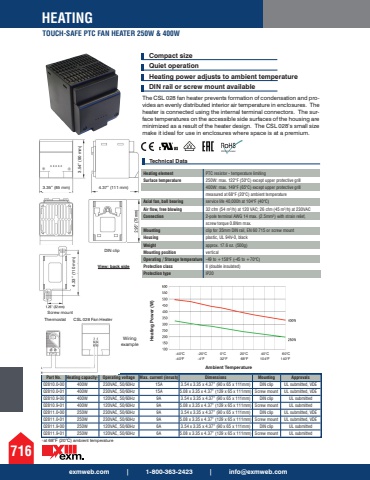

exmweb.com | 1-800-363-2423 | [email protected] PTC FAN HEATER 250W & 400W716Technical DataThe CSL 028 fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures. The heater is connected using the internal terminal connectors. The surface temperatures on the accessible side surfaces of the housing are minimized as a result of the heater design. The CSL 028%u2019s small size make it ideal for use in enclosures where space is at a premium.Heating element PTC resistor - temperature limitingSurface temperature 250W: max. 122%u00b0F (50%u00b0C) except upper protective grill 400W: max. 149%u00b0F (65%u00b0C) except upper protective grill measured at 68%u00b0F (20%u00b0C) ambient temperatureAxial fan, ball bearing service life 40,000h at 104%u00b0F (40%u00b0C) Air flow, free blowing 32 cfm (54 m%u00b3/h) at 120 VAC; 26 cfm (45 m%u00b3/h) at 230VACConnection 2-pole terminal AWG 14 max. (2.5mm%u00b2) with strain relief, screw torque 0.8Nm max.Mounting clip for 35mm DIN rail, EN 60 715 or screw mountHousing plastic, UL 94V-0, blackWeight approx. 17.6 oz. (500g)Mounting position verticalOperating / Storage temperature -49 to +158%u00b0F (-45 to +70%u00b0C)Protection class II (double insulated) Protection type IP20Part No. Heating capacity1) Operating voltage Max. current (inrush) Dimensions Mounting Approvals02810.0-00 400W 230VAC, 50/60Hz 15A 3.54 x 3.35 x 4.37%u201d (90 x 65 x 111mm) DIN clip UL submitted, VDE02810.0-01 400W 230VAC, 50/60Hz 15A 5.08 x 3.35 x 4.37%u201d (129 x 65 x 111mm) Screw mount UL submitted, VDE02810.9-00 400W 120VAC, 50/60Hz 9A 3.54 x 3.35 x 4.37%u201d (90 x 65 x 111mm) DIN clip UL submitted02810.9-01 400W 120VAC, 50/60Hz 9A 5.08 x 3.35 x 4.37%u201d (129 x 65 x 111mm) Screw mount UL submitted02811.0-00 250W 230VAC, 50/60Hz 9A 3.54 x 3.35 x 4.37%u201d (90 x 65 x 111mm) DIN clip UL submitted, VDE02811.0-01 250W 230VAC, 50/60Hz 9A 5.08 x 3.35 x 4.37%u201d (129 x 65 x 111mm) Screw mount UL submitted, VDE02811.9-00 250W 120VAC, 50/60Hz 6A 3.54 x 3.35 x 4.37%u201d (90 x 65 x 111mm) DIN clip UL submitted02811.9-01 250W 120VAC, 50/60Hz 6A 5.08 x 3.35 x 4.37%u201d (129 x 65 x 111mm) Screw mount UL submitted1) at 68%u00b0F (20%u00b0C) ambient temperatureAmbient TemperatureHeating Power (W)Vie back sideDIN clipWiring exampleCompact size Quiet operation Heating power adjusts to ambient temperature DIN rail or screw mount available-40%u00b0C -20%u00b0C 0%u00b0C 20%u00b0C 40%u00b0C 60%u00b0C -40%u00b0F -4%u00b0F 32%u00b0F 68%u00b0F 104%u00b0F 140%u00b0FThermostat CSL 028 Fan Heater3.35%u201d (85 mm) 4.37%u201d (111 mm) 3.54%u201d (90 mm)Screw mount 4.33%u201d (110 mm)
