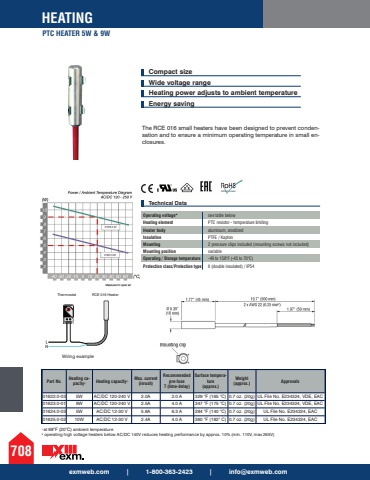

exmweb.com | 1-800-363-2423 | [email protected] HEATER 5W & 9W708Technical DataCompact size Wide voltage range Heating power adjusts to ambient temperature Energy savingThe RCE 016 small heaters have been designed to prevent condensation and to ensure a minimum operating temperature in small enclosures.Operating voltage* see table belowHeating element PTC resistor - temperature limitingHeater body aluminum, anodized Insulation PTFE / KaptonMounting 2 pressure clips included (mounting screws not included)Mounting position variableOperating / Storage temperature -49 to 158%u00b0F (-45 to 70%u00b0C)Protection class/Protection type II (double insulated) / IP541) at 68%u00b0F (20%u00b0C) ambient temperature 2) operating high voltage heaters below AC/DC 140V reduces heating performance by approx. 10% (min. 110V, max 265V)Wiring exampleThermostat RCE 016 HeaterPart No. Heating ca,pacity1) Heating capacity1) Max. current (inrush)Recommended pre-fuse T (time-delay)Surface temperature (approx.)Weight (approx.) Approvals01622.0-03 5W AC/DC 120-240 V 2.0A 2.0 A 329 %u00b0F (165 %u00b0C) 0.7 oz. (20g) UL File No. E234324, VDE, EAC01623.0-01 9W AC/DC 120-240 V 2.5A 4.0 A 347 %u00b0F (175 %u00b0C) 0.7 oz. (20g) UL File No. E234324, VDE, EAC01624.0-03 5W AC/DC 12-30 V 5.8A 6.3 A 284 %u00b0F (140 %u00b0C) 0.7 oz. (20g) UL File No. E234324, EAC01625.0-02 10W AC/DC 12-30 V 2.4A 4.0 A 360 %u00b0F (182%u00b0 C) 0.7 oz. (20g) UL File No. E234324, EAC
