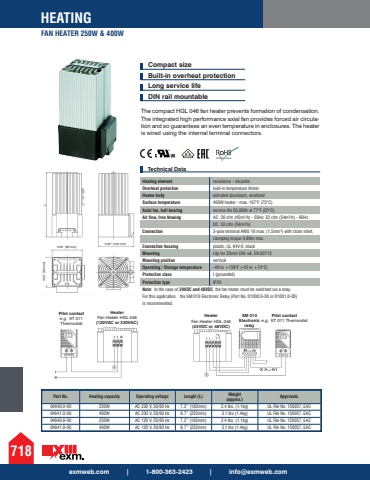

exmweb.com | 1-800-363-2423 | [email protected] HEATER 250W & 400W718Technical DataCompact size Built-in overheat protection Long service life DIN rail mountableThe compact HGL 046 fan heater prevents formation of condensation. The integrated high performance axial fan provides forced air circulation and so guarantees an even temperature in enclosures. The heater is wired using the internal terminal connectors.Heating element resistance - micanite Overheat protection built-in temperature limiterHeater body extruded aluminum, anodizedSurface temperature 400W heater - max. 167%u00b0F (75%u00b0C)Axial fan, ball bearing service life 50,000h at 77%u00b0F (25%u00b0C) Air flow, free blowing AC: 26 cfm (45m%u00b3/h) - 50Hz; 32 cfm (54m%u00b3/h) - 60HzDC: 32 cfm (54m%u00b3/h) Connection 3-pole terminal AWG 16 max. (1.5mm%u00b2) with strain relief, clamping torque 0.8Nm max. Connection housing plastic, UL 94V-0, blackMounting clip for 35mm DIN rail, EN 60715Mounting position verticalOperating / Storage temperature -49 to +158%u00b0F (-45 to +70%u00b0C)Protection class I (grounded) Protection type IP20Note: In the case of 24VDC and 48VDC, the fan heater must be switched via a relay. For this application, the SM 010 Electronic Relay (Part No. 01000.0-00 or 01001.0-00) is recommended.Pilot contact e.g. KT 011 ThermostatHeaterFan Heater HGL 046 (24VDC or 48VDC)SM 010 Electronic relay3.35%u201d (85 mm)3.94%u201d (100 mm)3.35%u201d (85 mm)HeaterFan Heater HGL 046 (120VAC or 230VAC)Pilot contacte.g. KT 011 ThermostatPart No. Heating capacity Operating voltage Lenght (L) Weight (approx.) Approvals04640.0-00 250W AC 230 V, 50/60 Hz 7.2%u2019%u2019 (182mm) 2.4 lbs. (1.1kg) UL File No. 150057, EAC04641.0-00 400W AC 230 V, 50/60 Hz 8.7%u2019%u2019 (222mm) 3.1 lbs (1.4kg) UL File No. 150057, EAC04640.9-00 250W AC 120 V, 50/60 Hz 7.2%u2019%u2019 (182mm) 2.4 lbs. (1.1kg) UL File No. 150057, EAC04641.9-00 400W AC 120 V, 50/60 Hz 8.7%u2019%u2019 (222mm) 3.1 lbs (1.4kg) UL File No. 150057, EAC
