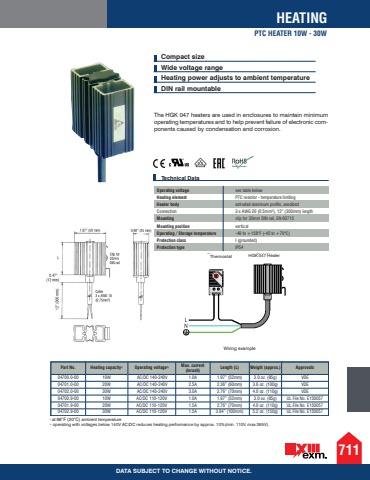

711HEATINGPTC HEATER 10W - 30WDATA SUBJECT TO CHANGE WITHOUT NOTICE.Technical DataCompact size Wide voltage range Heating power adjusts to ambient temperature DIN rail mountableThe HGK 047 heaters are used in enclosures to maintain minimum operating temperatures and to help prevent failure of electronic components caused by condensation and corrosion.Part No. Heating capacity1) Operating voltage2) Max. current (inrush) Length (L) Weight (approx.) Approvals04700.0-00 10W AC/DC 140-240V 1.0A 1.97%u201d (52mm) 3.0 oz. (85g) VDE04701.0-00 20W AC/DC 140-240V 2.5A 2.36%u201d (60mm) 3.6 oz. (100g) VDE04702.0-00 30W AC/DC 140-240V 3.0A 2.76%u201d (70mm) 4.0 oz. (110g) VDE04700.9-00 10W AC/DC 110-120V 1.0A 1.97%u201d (52mm) 3.0 oz. (85g) UL File No. E15005704701.9-00 20W AC/DC 110-120V 1.5A 2.76%u201d (70mm) 4.0 oz. (110g) UL File No. E15005704702.9-00 30W AC/DC 110-120V 1.5A 3.94%u201d (100mm) 5.2 oz. (150g) UL File No. E1500571) at 68%u00b0F (20%u00b0C) ambient temperature 2) operating with voltages below 140V AC/DC reduces heating performance by approx. 10%(min. 110V, max 265V).Operating voltage see table belowHeating element PTC resistor - temperature limitingHeater body extruded aluminum profile, anodized Connection 3 x AWG 20 (0.5mm%u00b2), 12%u201d (300mm) lengthMounting clip for 35mm DIN rail, EN 60715Mounting position verticalOperating / Storage temperature -49 to +158%u00b0F (-45 to +70%u00b0C)Protection class I (grounded) Protection type IP54Wiring exampleThermostat HGK 047 Heater
