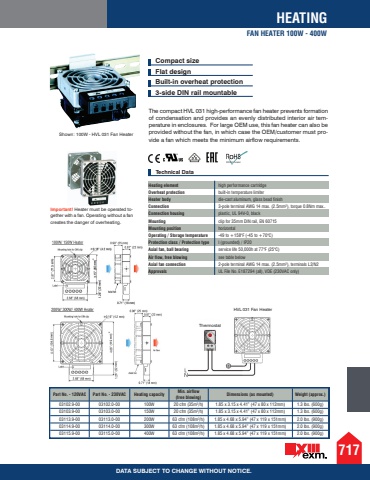

717HEATINGFAN HEATER 100W - 400WDATA SUBJECT TO CHANGE WITHOUT NOTICE.Technical DataThe compact HVL 031 high-performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures. For large OEM use, this fan heater can also be provided without the fan, in which case the OEM/customer must provide a fan which meets the minimum airflow requirements.Compact size Flat design Built-in overheat protection 3-side DIN rail mountableHeating element high performance cartridge Overheat protection built-in temperature limiterHeater body die-cast aluminum, glass bead finishConnection 3-pole terminal AWG 14 max. (2.5mm%u00b2), torque 0.8Nm max..Connection housing plastic, UL 94V-0, black Mounting clip for 35mm DIN rail, EN 60715Mounting position horizontalOperating / Storage temperature -49 to +158%u00b0F (-45 to +70%u00b0C)Protection class / Protection type I (grounded) / IP20Axial fan, ball bearing service life 50,000h at 77%u00b0F (25%u00b0C)Air flow, free blowing see table below Axial fan connection 2-pole terminal AWG 14 max. (2.5mm%u00b2), terminals L2/N2 Approvals UL File No. E187294 (all), VDE (230VAC only)Part No. - 120VAC Part No. - 230VAC Heating capacity Min. airflow (free blowing) Dimensions (as mounted) Weight (approx.)03102.9-00 03102.0-00 100W 20 cfm (35m%u00b3/h) 1.85 x 3.15 x 4.41%u201d (47 x 80 x 112mm) 1.3 lbs. (600g)03103.9-00 03103.0-00 150W 20 cfm (35m%u00b3/h) 1.85 x 3.15 x 4.41%u201d (47 x 80 x 112mm) 1.3 lbs. (600g)03113.9-00 03113.0-00 200W 63 cfm (108m%u00b3/h) 1.85 x 4.68 x 5.94%u201d (47 x 119 x 151mm) 2.0 lbs. (900g)03114.9-00 03114.0-00 300W 63 cfm (108m%u00b3/h) 1.85 x 4.68 x 5.94%u201d (47 x 119 x 151mm) 2.0 lbs. (900g)03115.9-00 03115.0-00 400W 63 cfm (108m%u00b3/h) 1.85 x 4.68 x 5.94%u201d (47 x 119 x 151mm) 2.0 lbs. (900g)Important! Heater must be operated together with a fan. Operating without a fan creates the danger of overheating.Shown: 100W - HVL 031 Fan HeaterHVL 031 Fan HeaterThermostat
