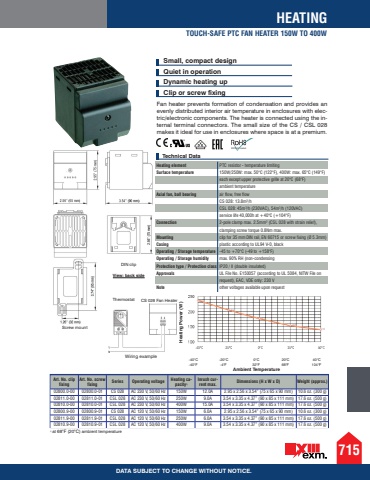

715HEATINGTOUCH-SAFE PTC FAN HEATER 150W TO 400WDATA SUBJECT TO CHANGE WITHOUT NOTICE.Technical DataFan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The heater is connected using the internal terminal connectors. The small size of the CS / CSL 028 makes it ideal for use in enclosures where space is at a premium.Heating element PTC resistor - temperature limitingSurface temperature 150W/250W: max. 50%u00b0C (122%u00b0F), 400W: max. 65%u00b0C (149%u00b0F)each except upper protective grille at 20%u00b0C (68%u00b0F) ambient temperatureAxial fan, ball bearing air flow, free flow CS 028: 13.8m%u00b3/h CSL 028: 45m%u00b3/h (230VAC), 54m%u00b3/h (120VAC) service life 40,000h at +40%u00b0C (+104%u00b0F)Connection 2-pole clamp max. 2.5mm%u00b2 (CSL 028 with strain relief), clamping screw torque 0.8Nm max.Mounting clip for 35 mm DIN rail, EN 60715 or screw fixing (%u00d8 5.3mm)Casing plastic according to UL94 V-0, blackOperating / Storage temperature -45 to +70%u00b0C (-49 to +158%u00b0F) Operating / Storage humidity max. 90% RH (non-condensingProtection type / Protection class IP20 / II (double insulated) Approvals UL File No. E150057 (according to UL 5084, NITW File onrequest), EAC, VDE only: 230 VNote other voltages available upon requestArt. No. clip fixingArt. No. screw fixing Series Operating voltage Heating capacity1)Inrush current max. Dimensions (H x W x D) Weight (approx.)02800.0-00 02800.0-01 CS 028 AC 230 V, 50/60 Hz 150W 12.0A 2.95 x 2.56 x 3.54%u201d (75 x 65 x 90 mm) 10.6 oz. (300 g)02811.0-00 02811.0-01 CSL 028 AC 230 V, 50/60 Hz 250W 9.0A 3.54 x 3.35 x 4.37%u201d (90 x 85 x 111 mm) 17.6 oz. (500 g)02810.0-00 02810.0-01 CSL 028 AC 230 V, 50/60 Hz 400W 15.0A 3.54 x 3.35 x 4.37%u201d (90 x 85 x 111 mm) 17.6 oz. (500 g)02800.9-00 02800.9-01 CS 028 AC 120 V, 50/60 Hz 150W 6.0A 2.95 x 2.56 x 3.54%u201d (75 x 65 x 90 mm) 10.6 oz. (300 g)02811.9-00 02811.9-01 CSL 028 AC 120 V, 50/60 Hz 250W 6.0A 3.54 x 3.35 x 4.37%u201d (90 x 85 x 111 mm) 17.6 oz. (500 g)02810.9-00 02810.9-01 CSL 028 AC 120 V, 50/60 Hz 400W 9.0A 3.54 x 3.35 x 4.37%u201d (90 x 85 x 111 mm) 17.6 oz. (500 g)1) at 68%u00b0F (20%u00b0C) ambient temperatureHeating Power (W)Vie back sideDIN clipSmall, compact design Quiet in operation Dynamic heating up Clip or screw fixing-40%u00b0C -20%u00b0C 0%u00b0C 20%u00b0C 40%u00b0C -40%u00b0F -4%u00b0F 32%u00b0F 68%u00b0F 104%u00b0FThermostatScrew mountWiring exampleCS 028 Fan HeaterAmbient Temperature
