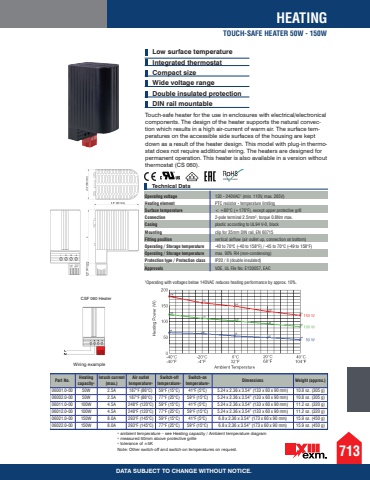

HEATINGTOUCH-SAFE HEATER 50W - 150WDATA SUBJECT TO CHANGE WITHOUT NOTICE.Technical DataLow surface temperature Integrated thermostat Compact size Wide voltage range Double insulated protection DIN rail mountableTouch-safe heater for the use in enclosures with electrical/electronical components. The design of the heater supports the natural convection which results in a high air-current of warm air. The surface temperatures on the accessible side surfaces of the housing are kept down as a result of the heater design. This model with plug-in thermostat does not require additional wiring. The heaters are designed for permanent operation. This heater is also available in a version without thermostat (CS 060).Operating voltage 120 - 240VAC%u00b9 (min. 110V, max. 265V)Heating element PTC resistor - temperature limitingSurface temperature < +80%u00b0C (+176%u00b0F), except upper protective grillConnection 2-pole terminal 2.5mm%u00b2, torque 0.8Nm max.Casing plastic according to UL94 V-0, blackMounting clip for 35mm DIN rail, EN 60715 Fitting position vertical airflow (air outlet up, connection on bottom)Operating / Storage temperature -40 to 70%u00b0C (-40 to 158%u00b0F) / -45 to 70%u00b0C (-49 to 158%u00b0F) Operating / Storage temperature max. 90% RH (non-condensing) Protection type / Protection class IP20 / II (double insulated)Approvals VDE, UL File No. E150057, EAC %u00b9Operating with voltages below 140VAC reduces heating performance by approx. 10%.Part No. Heating capacity2)Inrush current (max.)Air outlet temperature3)Switch-off temperature4)Switch-on temperature4) Dimensions Weight (approx.)06001.0-00 50W 2.5A 187%u00b0F (86%u00b0C) 59%u00b0F (15%u00b0C) 41%u00b0F (5%u00b0C) 5.24 x 2.36 x 3.54%u201d (133 x 60 x 90 mm) 10.8 oz. (305 g)06002.0-00 50W 2.5A 187%u00b0F (86%u00b0C) 77%u00b0F (25%u00b0C) 59%u00b0F (15%u00b0C) 5.24 x 2.36 x 3.54%u201d (133 x 60 x 90 mm) 10.8 oz. (305 g)06011.0-00 100W 4.5A 248%u00b0F (120%u00b0C) 59%u00b0F (15%u00b0C) 41%u00b0F (5%u00b0C) 5.24 x 2.36 x 3.54%u201d (133 x 60 x 90 mm) 11.2 oz. (320 g)06012.0-00 100W 4.5A 248%u00b0F (120%u00b0C) 77%u00b0F (25%u00b0C) 59%u00b0F (15%u00b0C) 5.24 x 2.36 x 3.54%u201d (133 x 60 x 90 mm) 11.2 oz. (320 g)06021.0-00 150W 8.0A 293%u00b0F (145%u00b0C) 59%u00b0F (15%u00b0C) 41%u00b0F (5%u00b0C) 6.8 x 2.36 x 3.54%u201d (173 x 60 x 90 mm) 15.9 oz. (450 g)06022.0-00 150W 8.0A 293%u00b0F (145%u00b0C) 77%u00b0F (25%u00b0C) 59%u00b0F (15%u00b0C) 6.8 x 2.36 x 3.54%u201d (173 x 60 x 90 mm) 15.9 oz. (450 g)2) ambient temperature %u2013 see Heating capacity / Ambient temperature diagram 3) measured 50mm above protective grille 4) tolerance of %u00b15K Note: Other switch-off and switch-on temperatures on request.Wiring exampleCSF 060 Heater713
