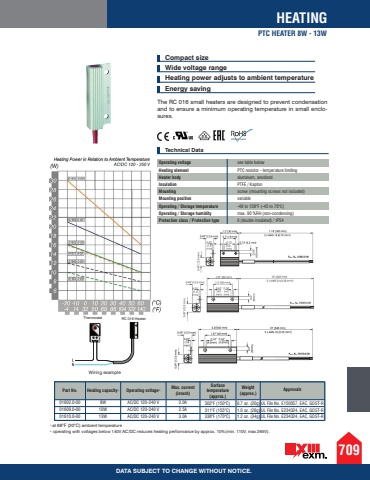

709HEATINGPTC HEATER 8W - 13WDATA SUBJECT TO CHANGE WITHOUT NOTICE.Technical DataCompact size Wide voltage range Heating power adjusts to ambient temperature Energy savingThe RC 016 small heaters are designed to prevent condensation and to ensure a minimum operating temperature in small enclosures.Operating voltage see table belowHeating element PTC resistor - temperature limitingHeater body aluminum, anodizedInsulation PTFE / KaptonMounting screw (mounting screws not included)Mounting position variableOperating / Storage temperature -49 to 158%u00b0F (-45 to 70%u00b0C)Operating / Storage humidity max. 90 %RH (non-condensing) Protection class / Protection type II (double insulated) / IP54Wiring example1) at 68%u00b0F (20%u00b0C) ambient temperature 2) operating with voltages below 140V AC/DC reduces heating performance by approx. 10%(min. 110V, max 265V).Thermostat RC 016 HeaterPart No. Heating capacity1) Operating voltage2) Max. current (inrush)Surface temperature (approx.)Weight (approx.) Approvals01602.0-00 8W AC/DC 120-240 V 2.0A01609.0-00 10W AC/DC 120-240 V 2.5A01610.0-00 13W AC/DC 120-240 V 3.0A302%u00b0F (150%u00b0C) 0.7 oz. (20g) UL File No. E150057, EAC, GOST-R 311%u00b0F (155%u00b0C) 1.0 oz. (28g) UL File No. E234324, EAC, GOST-R 338%u00b0F (170%u00b0C) 1.2 oz. (34g) UL File No. E234324, EAC, GOST-R
