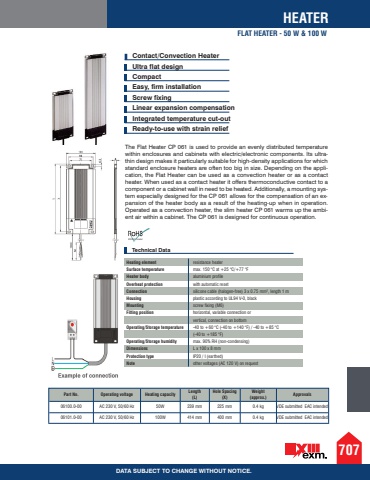

707DATA SUBJECT TO CHANGE WITHOUT NOTICE.HEATERContact/Convection Heater Ultra flat design Compact Easy, firm installation Screw fixing Linear expansion compensation Integrated temperature cut-out Ready-to-use with strain reliefThe Flat Heater CP 061 is used to provide an evenly distributed temperature within enclosures and cabinets with electric/electronic components. Its ultrathin design makes it particularly suitable for high-density applications for which standard enclosure heaters are often too big in size. Depending on the application, the Flat Heater can be used as a convection heater or as a contact heater. When used as a contact heater it offers thermoconductive contact to a component or a cabinet wall in need to be heated. Additionally, a mounting system especially designed for the CP 061 allows for the compensation of an expansion of the heater body as a result of the heating-up when in operation. Operated as a convection heater, the slim heater CP 061 warms up the ambient air within a cabinet. The CP 061 is designed for continuous operation. Part No. Operating voltage Heating capacity Length (L)Hole Spacing (X)Weight (approx.) Approvals06100.0-00 AC 230 V, 50/60 Hz 50W 239 mm 225 mm 0.4 kg VDE submitted EAC intended06101.0-00 AC 230 V, 50/60 Hz 100W 414 mm 400 mm 0.4 kg VDE submitted EAC intendedTechnical DataHeating element resistance heater Surface temperature max. 150 %u00b0C at +25 %u00b0C/+77 %u00b0FHeater body aluminium profile Overheat protection with automatic reset Connection silicone cable (halogen-free) 3 x 0.75 mm%u00b2, length 1 m Housing plastic according to UL94 V-0, black Mounting screw fixing (M6) Fitting position horizontal, variable connection or vertical, connection on bottom Operating/Storage temperature -40 to +60 %u00b0C (-40 to +140 %u00b0F) / -40 to +85 %u00b0C (-40 to +185 %u00b0F) Operating/Storage humidity max. 90% RH (non-condensing) Dimensions L x 100 x 8 mm Protection type IP20 / I (earthed) Note other voltages (AC 120 V) on request FLAT HEATER - 50 W & 100 W
