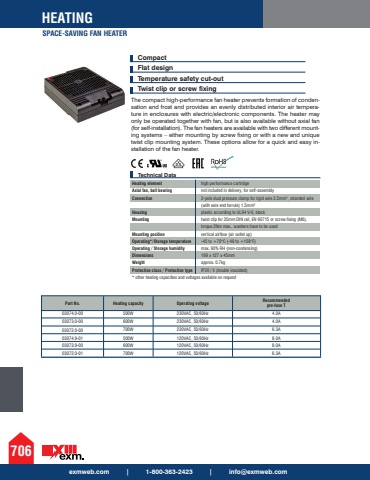

exmweb.com | 1-800-363-2423 | [email protected] FAN HEATERTechnical DataCompact Flat design Temperature safety cut-out Twist clip or screw fixingThe compact high-performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The heater may only be operated together with fan, but is also available without axial fan (for self-installation). The fan heaters are available with two different mounting systems %u2013 either mounting by screw fixing or with a new and unique twist clip mounting system. These options allow for a quick and easy installation of the fan heater. Heating element high performance cartridgeAxial fan, ball bearing not included in delivery, for self-assembly Connection 2-pole dual pressure clamp for rigid wire 2.5mm%u00b2, stranded wire (with wire end ferrule) 1.5mm%u00b2 Housing plastic according to UL94 V-0, black Mounting twist clip for 35mm DIN rail, EN 60715 or screw fixing (M6), torque 2Nm max., washers have to be used Mounting position vertical airflow (air outlet up) Operating*/Storage temperature -45 to +70%u00b0C (-49 to +158%u00b0F) Operating / Storage humidity max. 90% RH (non-condensing)Dimensions 169 x 127 x 45mm Weight approx. 0.7kgProtection class / Protection type IP20 / II (double insulated) * other heating capacities and voltages available on requestPart No. Heating capacity Operating voltage Recommended pre-fuse T03074.0-00 500W 230VAC, 50/60Hz 4.0A03073.0-00 600W 230VAC, 50/60Hz 4.0A03072.0-00 700W 230VAC, 50/60Hz 6.3A03074.9-01 500W 120VAC, 50/60Hz 8.0A03073.9-00 600W 120VAC, 50/60Hz 8.0A03072.0-01 700W 120VAC, 50/60Hz 6.3A
