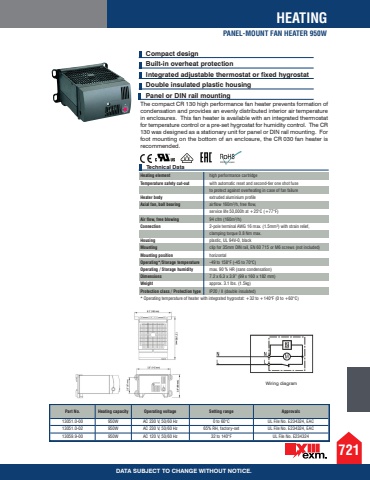

721HEATINGPANEL-MOUNT FAN HEATER 950WDATA SUBJECT TO CHANGE WITHOUT NOTICE.Technical DataCompact design Built-in overheat protection Integrated adjustable thermostat or fixed hygrostat Double insulated plastic housing Panel or DIN rail mountingThe compact CR 130 high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures. This fan heater is available with an integrated thermostat for temperature control or a pre-set hygrostat for humidity control. The CR 130 was designed as a stationary unit for panel or DIN rail mounting. For foot mounting on the bottom of an enclosure, the CR 030 fan heater is recommended. Heating element high performance cartridge Temperature safety cut-out with automatic reset and second-tier one shot fuse to protect against overheating in case of fan failure Heater body extruded aluminium profileAxial fan, ball bearing airflow 160m%u00b3/h, free flow, service life 50,000h at +25%u00b0C (+77%u00b0F) Air flow, free blowing 94 cfm (160m%u00b3/h)Connection 2-pole terminal AWG 16 max. (1.5mm%u00b2) with strain relief, clamping torque 0.8 Nm max. Housing plastic, UL 94V-0, blackMounting clip for 35mm DIN rail, EN 60 715 or M6 screws (not included)Mounting position horizontalOperating*/Storage temperature -49 to 158%u00b0F (-45 to 70%u00b0C) Operating / Storage humidity max. 90 % HR (sans condensation)Dimensions 7.2 x 6.3 x 3.9%u201d (99 x 160 x 182 mm) Weight approx. 3.1 lbs. (1.5kg)Protection class / Protection type IP20 / II (double insulated) * Operating temperature of heater with integrated hygrostat: +32 to +140%u00b0F (0 to +60%u00b0C)Wiring diagramPart No. Heating capacity Operating voltage Setting range Approvals13051.0-00 950W AC 230 V, 50/60 Hz 0 to 60%u00b0C UL File No. E234324, EAC13051.0-02 950W AC 230 V, 50/60 Hz 65% RH, factory-set UL File No. E234324, EAC13059.9-00 950W AC 120 V, 50/60 Hz 32 to 140%u00b0F UL File No. E234324
