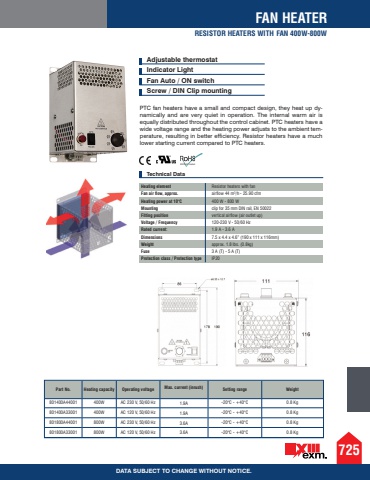

725DATA SUBJECT TO CHANGE WITHOUT NOTICE.FAN HEATERRESISTOR HEATERS WITH FAN 400W-800WHeating element Resistor heaters with fan Fan air flow, approx. airflow 44 m%u00b3/h - 25.90 cfm Heating power at 10%u00b0C 400 W - 800 WMounting clip for 35 mm DIN rail, EN 50022 Fitting position vertical airflow (air outlet up)Voltage / Frequency 120-230 V - 50/60 Hz Rated current: 1.9 A - 3.6 ADimensions 7.5 x 4.4 x 4.6%u201d (190 x 111 x 116mm) Weight approx. 1.8 lbs. (0.8kg) Fuse 3 A (T) - 5 A (T)Protection class / Protection type IP20Technical DataAdjustable thermostat Indicator Light Fan Auto / ON switch Screw / DIN Clip mountingPTC fan heaters have a small and compact design, they heat up dynamically and are very quiet in operation. The internal warm air is equally distributed throughout the control cabinet. PTC heaters have a wide voltage range and the heating power adjusts to the ambient temperature, resulting in better efficiency. Resistor heaters have a much lower starting current compared to PTC heaters.Part No. Heating capacity Operating voltage Max. current (inrush) Setting range Weight801400A44001 400W AC 230 V, 50/60 Hz 1.9A -20%u00b0C - +40%u00b0C 0.8 Kg801400A33001 400W AC 120 V, 50/60 Hz 1.9A -20%u00b0C - +40%u00b0C 0.8 Kg801800A44001 800W AC 230 V, 50/60 Hz 3.6A -20%u00b0C - +40%u00b0C 0.8 Kg801800A33001 800W AC 120 V, 50/60 Hz 3.6A -20%u00b0C - +40%u00b0C 0.8 Kg
