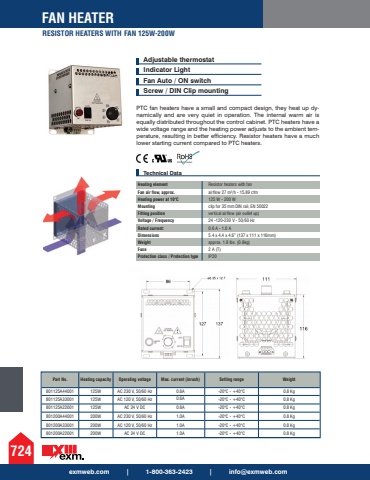

724exmweb.com | 1-800-363-2423 | [email protected] HEATER RESISTOR HEATERS WITH FAN 125W-200WHeating element Resistor heaters with fan Fan air flow, approx. airflow 27 m%u00b3/h - 15.89 cfm Heating power at 10%u00b0C 125 W - 200 WMounting clip for 35 mm DIN rail, EN 50022 Fitting position vertical airflow (air outlet up)Voltage / Frequency 24 -120-230 V - 50/60 Hz Rated current: 0.6 A - 1.0 ADimensions 5.4 x 4.4 x 4.6%u201d (137 x 111 x 116mm) Weight approx. 1.8 lbs. (0.8kg) Fuse 2 A (T)Protection class / Protection type IP20Technical DataAdjustable thermostat Indicator Light Fan Auto / ON switch Screw / DIN Clip mountingPTC fan heaters have a small and compact design, they heat up dynamically and are very quiet in operation. The internal warm air is equally distributed throughout the control cabinet. PTC heaters have a wide voltage range and the heating power adjusts to the ambient temperature, resulting in better efficiency. Resistor heaters have a much lower starting current compared to PTC heaters.Part No. Heating capacity Operating voltage Max. current (inrush) Setting range Weight801125A44001 125W AC 230 V, 50/60 Hz 0.6A -20%u00b0C - +40%u00b0C 0.8 Kg801125A33001 125W AC 120 V, 50/60 Hz 0.6A -20%u00b0C - +40%u00b0C 0.8 Kg801125A22001 125W AC 24 V DC 0.6A -20%u00b0C - +40%u00b0C 0.8 Kg801200A44001 200W AC 230 V, 50/60 Hz 1.0A -20%u00b0C - +40%u00b0C 0.8 Kg801200A33001 200W AC 120 V, 50/60 Hz 1.0A -20%u00b0C - +40%u00b0C 0.8 Kg801200A22001 200W AC 24 V DC 1.0A -20%u00b0C - +40%u00b0C 0.8 Kg
