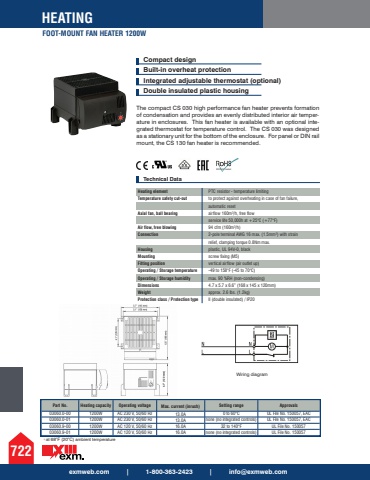

Heating element PTC resistor - temperature limiting Temperature safety cut-out to protect against overheating in case of fan failure, automatic reset Axial fan, ball bearing airflow 160m%u00b3/h, free flow service life 50,000h at +25%u00b0C (+77%u00b0F) Air flow, free blowing 94 cfm (160m%u00b3/h)Connection 2-pole terminal AWG 16 max. (1.5mm%u00b2) with strain relief, clamping torque 0.8Nm max. Housing plastic, UL 94V-0, blackMounting screw fixing (M5) Fitting position vertical airflow (air outlet up)Operating / Storage temperature -49 to 158%u00b0F (-45 to 70%u00b0C) Operating / Storage humidity max. 90 %RH (non-condensing)Dimensions 4.7 x 5.7 x 6.6%u201d (168 x 145 x 120mm) Weight approx. 2.6 lbs. (1.2kg)Protection class / Protection type II (double insulated) / IP20exmweb.com | 1-800-363-2423 | [email protected] FAN HEATER 1200W722Technical DataCompact design Built-in overheat protection Integrated adjustable thermostat (optional) Double insulated plastic housingThe compact CS 030 high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures. This fan heater is available with an optional integrated thermostat for temperature control. The CS 030 was designed as a stationary unit for the bottom of the enclosure. For panel or DIN rail mount, the CS 130 fan heater is recommended. Wiring diagram1) at 68%u00b0F (20%u00b0C) ambient temperature4.7%u201d (120 mm)Part No. Heating capacity Operating voltage Max. current (inrush) Setting range Approvals03060.0-00 1200W AC 230 V, 50/60 Hz 13.0A 0 to 60%u00b0C UL File No. 150057, EAC03060.0-01 1200W AC 230 V, 50/60 Hz 13.0A none (no integrated controls) UL File No. 150057, EAC03060.9-00 1200W AC 120 V, 50/60 Hz 16.0A 32 to 140%u00b0F UL File No. 15005703060.9-01 1200W AC 120 V, 50/60 Hz 16.0A none (no integrated controls) UL File No. 150057
