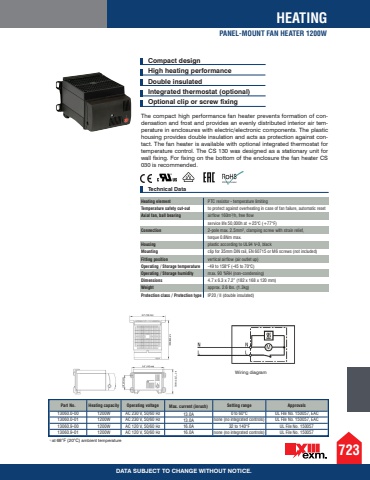

723HEATINGPANEL-MOUNT FAN HEATER 1200WDATA SUBJECT TO CHANGE WITHOUT NOTICE.Technical DataCompact design High heating performance Double insulated Integrated thermostat (optional) Optional clip or screw fixingThe compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The plastic housing provides double insulation and acts as protection against contact. The fan heater is available with optional integrated thermostat for temperature control. The CS 130 was designed as a stationary unit for wall fixing. For fixing on the bottom of the enclosure the fan heater CS 030 is recommended.Heating element PTC resistor - temperature limiting Temperature safety cut-out to protect against overheating in case of fan failure, automatic reset Axial fan, ball bearing airflow 160m%u00b3/h, free flow service life 50,000h at +25%u00b0C (+77%u00b0F) Connection 2-pole max. 2.5mm%u00b2, clamping screw with strain relief, torque 0.8Nm max. Housing plastic according to UL94 V-0, blackMounting clip for 35mm DIN rail, EN 60715 or M6 screws (not included) Fitting position vertical airflow (air outlet up)Operating / Storage temperature -49 to 158%u00b0F (-45 to 70%u00b0C) Operating / Storage humidity max. 90 %RH (non-condensing)Dimensions 4.7 x 6.3 x 7.2%u201d (182 x 168 x 120 mm) Weight approx. 2.6 lbs. (1.3kg)Protection class / Protection type IP20 / II (double insulated)Wiring diagram1) at 68%u00b0F (20%u00b0C) ambient temperature4.7%u201d (120 mm)Part No. Heating capacity Operating voltage Max. current (inrush) Setting range Approvals13060.0-00 1200W AC 230 V, 50/60 Hz 13.0A 0 to 60%u00b0C UL File No. 150057, EAC13060.0-01 1200W AC 230 V, 50/60 Hz 13.0A none (no integrated controls) UL File No. 150057, EAC13060.9-00 1200W AC 120 V, 50/60 Hz 16.0A 32 to 140%u00b0F UL File No. 15005713060.9-01 1200W AC 120 V, 50/60 Hz 16.0A none (no integrated controls) UL File No. 150057
