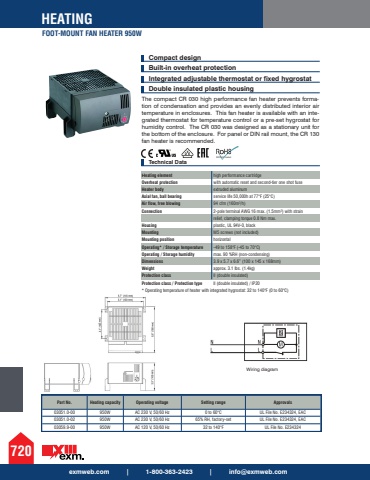

exmweb.com | 1-800-363-2423 | [email protected] FOOT-MOUNT FAN HEATER 950W720Technical DataCompact design Built-in overheat protection Integrated adjustable thermostat or fixed hygrostat Double insulated plastic housingHeating element high performance cartridge Overheat protection with automatic reset and second-tier one shot fuse Heater body extruded aluminumAxial fan, ball bearing service life 50,000h at 77%u00b0F (25%u00b0C) Air flow, free blowing 94 cfm (160m%u00b3/h)Connection 2-pole terminal AWG 16 max. (1.5mm%u00b2) with strain relief, clamping torque 0.8 Nm max. Housing plastic, UL 94V-0, blackMounting M5 screws (not included)Mounting position horizontalOperating* / Storage temperature -49 to 158%u00b0F (-45 to 70%u00b0C) Operating / Storage humidity max. 90 %RH (non-condensing)Dimensions 3.9 x 5.7 x 6.6%u201d (100 x 145 x 168mm) Weight approx. 3.1 lbs. (1.4kg)Protection class II (double insulated) Protection class / Protection type II (double insulated) / IP20 * Operating temperature of heater with integrated hygrostat: 32 to 140%u00b0F (0 to 60%u00b0C)The compact CR 030 high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures. This fan heater is available with an integrated thermostat for temperature control or a pre-set hygrostat for humidity control. The CR 030 was designed as a stationary unit for the bottom of the enclosure. For panel or DIN rail mount, the CR 130 fan heater is recommended. Wiring diagramPart No. Heating capacity Operating voltage Setting range Approvals03051.0-00 950W AC 230 V, 50/60 Hz 0 to 60%u00b0C UL File No. E234324, EAC03051.0-02 950W AC 230 V, 50/60 Hz 65% RH, factory-set UL File No. E234324, EAC03059.9-00 950W AC 120 V, 50/60 Hz 32 to 140%u00b0F UL File No. E234324
