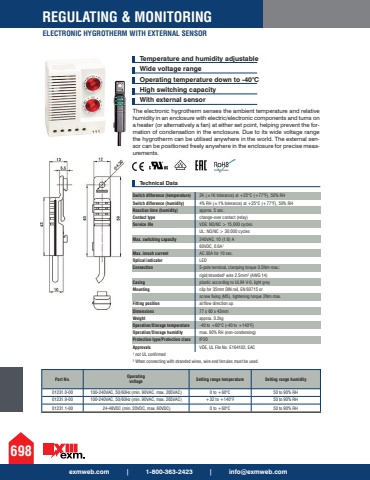

exmweb.com | 1-800-363-2423 | [email protected] HYGROTHERM WITH EXTERNAL SENSORREGULATING & MONITORINGTechnical DataTemperature and humidity adjustable Wide voltage range Operating temperature down to -40%u00b0C High switching capacity With external sensorThe electronic hygrotherm senses the ambient temperature and relative humidity in an enclosure with electric/electronic components and turns on a heater (or alternatively a fan) at either set point, helping prevent the formation of condensation in the enclosure. Due to its wide voltage range the hygrotherm can be utilised anywhere in the world. The external sensor can be positioned freely anywhere in the enclosure for precise measurements.Part No. Operating voltage Setting range temperature Setting range humidity01231.0-00 100-240VAC, 50/60Hz (min. 90VAC, max. 265VAC) 0 to +60%u00b0C 50 to 90% RH01231.9-00 100-240VAC, 50/60Hz (min. 90VAC, max. 265VAC) +32 to +140%u00b0F 50 to 90% RH01231.1-00 24-48VDC (min. 20VDC, max. 60VDC) 0 to +60%u00b0C 50 to 90% RHSwitch difference (temperature) 2K (%u00b11K tolerance) at +25%u00b0C (+77%u00b0F), 50% RH Switch difference (humidity) 4% RH (%u00b11% tolerance) at +25%u00b0C (+77%u00b0F), 50% RHReaction time (humidity) approx. 5 sec. Contact type change-over contact (relay) Service life VDE: NO/NC > 15,000 cycles UL: NO/NC > 30,000 cycles Max. switching capacity 240VAC, 10 (1.6) A 60VDC, 0.6A%u00b9 Max. inrush current AC 30A for 10 sec. Optical indicator LED Connection 5-pole terminal, clamping torque 0.5Nm max.: rigid/stranded%u00b2 wire 2.5mm%u00b2 (AWG 14) Casing plastic according to UL94 V-0, light grey Mounting clip for 35mm DIN rail, EN 60715 or screw fixing (M5), tightening torque 2Nm max.Fitting position airflow direction up Dimensions 77 x 60 x 43mm Weight approx. 0.2kg Operation/Storage temperature -40 to +60%u00b0C (-40 to +140%u00b0F)Operation/Storage humidity max. 90% RH (non-condensing)Protection type/Protection class IP20Approvals VDE, UL File No. E164102, EAC %u00b9 not UL confirmed %u00b2 When connecting with stranded wires, wire end ferrules must be used.
