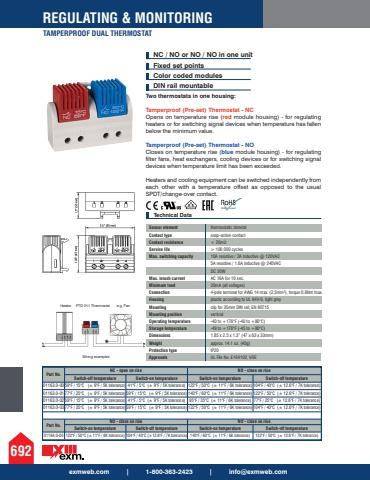

exmweb.com | 1-800-363-2423 | [email protected] & MONITORINGTAMPERPROOF DUAL THERMOSTAT692Technical DataNC / NO or NO / NO in one unit Fixed set points Color coded modules DIN rail mountableSensor element thermostatic bimetalContact type snap-action contact Contact resistance < 20m%u00d9Service life > 100,000 cyclesMax. switching capacity 10A resistive / 2A inductive @ 120VAC 5A resistive / 1.6A inductive @ 240VAC DC 30WMax. inrush current AC 16A for 10 sec. Minimum load 20mA (all voltages) Connection 4-pole terminal for AWG 14 max. (2.5mm%u00b2), torque 0.8Nm max. Housing plastic according to UL 94V-0, light greyMounting clip for 35mm DIN rail, EN 60715 Mounting position verticalOperating temperature -40 to +176%u00b0F (-40 to +80%u00b0C) Storage temperature -49 to +176%u00b0F (-45 to +80%u00b0C)Dimensions 1.85 x 2.5 x 1.3%u201d (47 x 63 x 33mm)Weight approx. 14.1 oz. (40g)Protection type IP20Approvals UL File No. E164102, VDEPart No. NC - open on rise NO - close on riseSwitch-off temperature Switch-on temperature Switch-on temperature Switch-off temperature 01163.0-00 59%u00b0F / 15%u00b0C (%u00b1 9%u00b0F / 5K tolerance) 41%u00b0F / 5%u00b0C (%u00b1 9%u00b0F / 5K tolerance) 122%u00b0F / 50%u00b0C (%u00b1 11%u00b0F / 6K tolerance) 104%u00b0F / 40%u00b0C (%u00b1 12.6%u00b0F / 7K tolerance)01163.0-01 77%u00b0F / 25%u00b0C (%u00b1 9%u00b0F / 5K tolerance) 59%u00b0F / 15%u00b0C (%u00b1 9%u00b0F / 5K tolerance) 140%u00b0F / 60%u00b0C (%u00b1 11%u00b0F / 6K tolerance) 122%u00b0F / 50%u00b0C (%u00b1 12.6%u00b0F / 7K tolerance)01163.0-02 59%u00b0F / 15%u00b0C (%u00b1 9%u00b0F / 5K tolerance) 41%u00b0F / 5%u00b0C (%u00b1 9%u00b0F / 5K tolerance) 95%u00b0F / 35%u00b0C (%u00b1 11%u00b0F / 6K tolerance) 77%u00b0F / 25%u00b0C (%u00b1 12.6%u00b0F / 7K tolerance)01163.0-03 77%u00b0F / 25%u00b0C (%u00b1 9%u00b0F / 5K tolerance) 59%u00b0F / 15%u00b0C (%u00b1 9%u00b0F / 5K tolerance) 122%u00b0F / 50%u00b0C (%u00b1 11%u00b0F / 6K tolerance) 104%u00b0F / 40%u00b0C (%u00b1 12.6%u00b0F / 7K tolerance)Part No.NO - close on rise NO - close on riseSwitch-on temperature Switch-off temperature Switch-on temperature Switch-off temperature 01164.0-00 122%u00b0F / 50%u00b0C (%u00b1 11%u00b0F / 6K tolerance) 104%u00b0F / 40%u00b0C (%u00b112.6%u00b0F / 7K tolerance) 140%u00b0F / 60%u00b0C (%u00b1 11%u00b0F / 6K tolerance) 122%u00b0F / 50%u00b0C (%u00b1 12.6%u00b0F / 7K tolerance)Two thermostats in one housing:Tamperproof (Pre-set) Thermostat - NCOpens on temperature rise (red module housing) - for regulating heaters or for switching signal devices when temperature has fallen below the minimum value. Tamperproof (Pre-set) Thermostat - NOCloses on temperature rise (blue module housing) - for regulating filter fans, heat exchangers, cooling devices or for switching signal devices when temperature limit has been exceeded. Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual SPDT/change-over contact.Wiring examplesHeater FTD 011 Thermostat e.g. Fan
