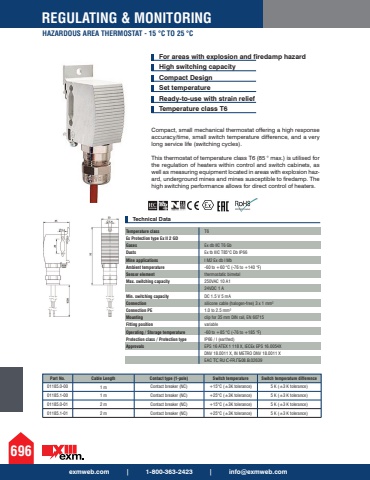

exmweb.com | 1-800-363-2423 | [email protected] & MONITORINGHAZARDOUS AREA THERMOSTAT - 15 %u00b0C TO 25 %u00b0C696For areas with explosion and firedamp hazard High switching capacity Compact Design Set temperature Ready-to-use with strain relief Temperature class T6Compact, small mechanical thermostat offering a high response accuracy/time, small switch temperature difference, and a very long service life (switching cycles). This thermostat of temperature class T6 (85 %u00b0 max.) is utilised for the regulation of heaters within control and switch cabinets, as well as measuring equipment located in areas with explosion hazard, underground mines and mines susceptible to firedamp. The high switching performance allows for direct control of heaters.Part No. Cable Length Contact type (1-pole) Switch temperature Switch temperature difference01185.0-00 1 m Contact breaker (NC) +15%u00b0C (%u00b13K tolerance) 5 K (%u00b13 K tolerance)01185.1-00 1 m Contact breaker (NC) +25%u00b0C (%u00b13K tolerance) 5 K (%u00b13 K tolerance)01185.0-01 2 m Contact breaker (NC) +15%u00b0C (%u00b13K tolerance) 5 K (%u00b13 K tolerance)01185.1-01 2 m Contact breaker (NC) +25%u00b0C (%u00b13K tolerance) 5 K (%u00b13 K tolerance)Technical DataTemperature class T6 Ex Protection type Ex II 2 GD Gases Ex db IIC T6 Gb Dusts Ex tb IIIC T85%u00b0C Db IP66 Mine applications I M2 Ex db I Mb Ambient temperature -60 to +60 %u00b0C (-76 to +140 %u00b0F) Sensor element thermostatic bimetal Max. switching capacity 250VAC 10 A1 24VDC 1 A Min. switching capacity DC 1.5 V 5 mA Connection silicone cable (halogen-free) 3 x 1 mm%u00b2Connection PE 1.0 to 2.5 mm%u00b2Mounting clip for 35 mm DIN rail, EN 60715 Fitting position variableOperating / Storage temperature -60 to +85 %u00b0C (-76 to +185 %u00b0F) Protection class / Protection type IP66 / I (earthed) Approvals EPS 16 ATEX 1 118 X, IECEx EPS 16.0054X DNV 18.0011 X, IN METRO DNV 18.0011 X EAC %u0422%u0421 RU %u0421-FR.%u0413%u041108.%u0412.02639
