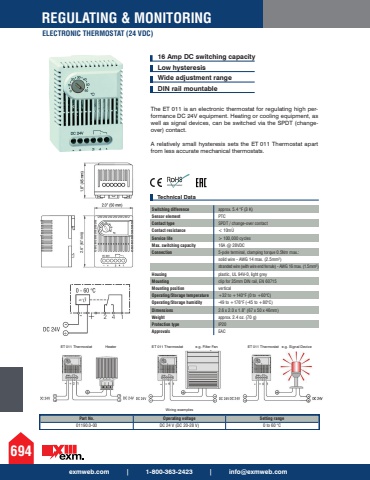

exmweb.com | 1-800-363-2423 | [email protected] & MONITORINGELECTRONIC THERMOSTAT (24 VDC)694Technical Data16 Amp DC switching capacity Low hysteresis Wide adjustment range DIN rail mountableThe ET 011 is an electronic thermostat for regulating high performance DC 24V equipment. Heating or cooling equipment, as well as signal devices, can be switched via the SPDT (changeover) contact. A relatively small hysteresis sets the ET 011 Thermostat apart from less accurate mechanical thermostats.Switching difference approx. 5.4 %u00b0F (3 K)Sensor element PTCContact type SPDT / change-over contactContact resistance < 10m%u00d9Service life > 100,000 cyclesMax. switching capacity 16A @ 28VDCConnection 5-pole terminal, clamping torque 0.5Nm max.: solid wire - AWG 14 max. (2.5mm%u00b2) stranded wire (with wire end ferrule) - AWG 16 max. (1.5mm%u00b2)Housing plastic, UL 94V-0, light greyMounting clip for 35mm DIN rail, EN 60715Mounting position verticalOperating/Storage temperature +32 to +140%u00b0F (0 to +60%u00b0C) Operating/Storage humidity -49 to +176%u00b0F (-45 to +80%u00b0C)Dimensions 2.6 x 2.0 x 1.8%u201d (67 x 50 x 46mm)Weight approx. 2.4 oz. (70 g) Protection type IP20 Approvals EACPart No. Operating voltage Setting range01190.0-00 DC 24 V (DC 20-28 V) 0 to 60 %u00b0CET 011 Thermostat Heater ET 011 Thermostat e.g. Filter Fan ET 011 Thermostat e.g. Signal DeviceWiring examples
