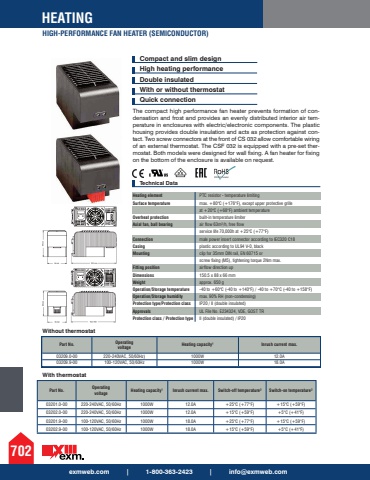

exmweb.com | 1-800-363-2423 | [email protected] FAN HEATER (SEMICONDUCTOR)702Technical DataCompact and slim design High heating performance Double insulated With or without thermostat Quick connectionThe compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The plastic housing provides double insulation and acts as protection against contact. Two screw connectors at the front of CS 032 allow comfortable wiring of an external thermostat. The CSF 032 is equipped with a pre-set thermostat. Both models were designed for wall fixing. A fan heater for fixing on the bottom of the enclosure is available on request.Heating element PTC resistor - temperature limiting Surface temperature max. +80%u00b0C (+176%u00b0F), except upper protective grille at +20%u00b0C (+68%u00b0F) ambient temperatureOverheat protection built-in temperature limiter Axial fan, ball bearing air flow 63m%u00b3/h, free flow service life 70,000h at +25%u00b0C (+77%u00b0F) Connection male power insert connector according to IEC320 C18 Casing plastic according to UL94 V-0, black Mounting clip for 35mm DIN rail, EN 60715 or screw fixing (M5), tightening torque 2Nm max.Fitting position airflow direction up Dimensions 150.5 x 88 x 66 mm Weight approx. 650 g Operation/Storage temperature -40 to +60%u00b0C (-40 to +140%u00b0F) / -40 to +70%u00b0C (-40 to +158%u00b0F)Operation/Storage humidity max. 90% RH (non-condensing)Protection type/Protection class IP20 / II (double insulated)Approvals UL File No. E234324, VDE, GOST TRProtection class / Protection type II (double insulated) / IP20Without thermostatPart No. Operating voltage Heating capacity%u00b9 Inrush current max.03209.0-00 220-240VAC, 50/60Hz) 1000W 12.0A03209.9-00 100-120VAC, 50/60Hz 1000W 18.0AWith thermostatPart No. Operating voltage Heating capacity%u00b9 Inrush current max. Switch-off temperature%u00b2 Switch-on temperature%u00b203201.0-00 220-240VAC, 50/60Hz 1000W 12.0A +25%u00b0C (+77%u00b0F) +15%u00b0C (+59%u00b0F)03202.0-00 220-240VAC, 50/60Hz 1000W 12.0A +15%u00b0C (+59%u00b0F) +5%u00b0C (+41%u00b0F)03201.9-00 100-120VAC, 50/60Hz 1000W 18.0A +25%u00b0C (+77%u00b0F) +15%u00b0C (+59%u00b0F)03202.9-00 100-120VAC, 50/60Hz 1000W 18.0A +15%u00b0C (+59%u00b0F) +5%u00b0C (+41%u00b0F)HEATING
