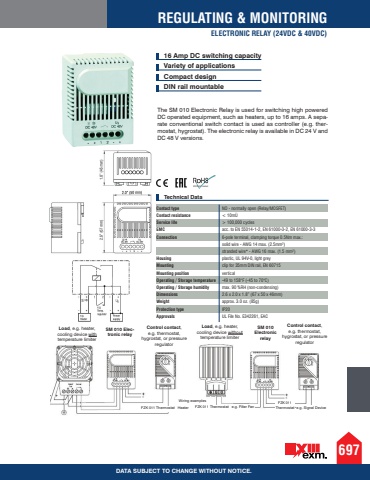

697REGULATING & MONITORINGELECTRONIC RELAY (24VDC & 40VDC)DATA SUBJECT TO CHANGE WITHOUT NOTICE.Technical Data16 Amp DC switching capacity Variety of applications Compact design DIN rail mountableThe SM 010 Electronic Relay is used for switching high powered DC operated equipment, such as heaters, up to 16 amps. A separate conventional switch contact is used as controller (e.g. thermostat, hygrostat). The electronic relay is available in DC 24 V and DC 48 V versions.Contact type NO - normally open (Relay/MOSFET)Contact resistance < 10m%u00d9Service life > 100,000 cyclesEMC acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3Connection 6-pole terminal, clamping torque 0.5Nm max.: solid wire - AWG 14 max. (2.5mm%u00b2) stranded wire* - AWG 16 max. (1.5 mm%u00b2)Housing plastic, UL 94V-0, light greyMounting clip for 35mm DIN rail, EN 60715Mounting position verticalOperating / Storage temperature -49 to 158%u00b0F (-45 to 70%u00b0C) Operating / Storage humidity max. 90 %RH (non-condensing)Dimensions 2.6 x 2.0 x 1.8%u201d (67 x 50 x 46mm)Weight approx. 3.0 oz. (85g)Protection type IP20Approvals UL File No. E342261, EACLoad, e.g. heater, cooling device withtemperature limiterSM 010 Electronic relayControl contact, e.g. thermostat, hygrostat, or pressure regulatorSM 010 Electronic relayControl contact, e.g. thermostat, hygrostat, or pressure regulatorLoad, e.g. heater, cooling device withouttemperature limiterWiring examplesFZK 011 Thermostat Heater FZK 011 Thermostat e.g. Filter FanFZK 011 Thermostat e.g. Signal Device
