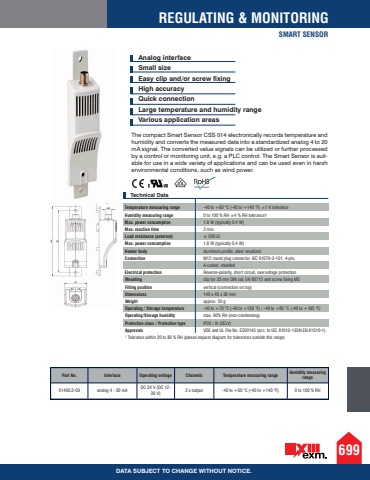

699DATA SUBJECT TO CHANGE WITHOUT NOTICE.REGULATING & MONITORINGSMART SENSORThe compact Smart Sensor CSS 014 electronically records temperature and humidity and converts the measured data into a standardized analog 4 to 20 mA signal. The converted value signals can be utilized or further processed by a control or monitoring unit, e.g. a PLC control. The Smart Sensor is suitable for use in a wide variety of applications and can be used even in harsh environmental conditions, such as wind power.Analog interface Small size Easy clip and/or screw fixing High accuracy Quick connection Large temperature and humidity range Various application areasPart No. Interface Operating voltage Channels Temperature measuring range Humidity measuring range01400.2-00 analog 4 - 20 mA DC 24 V (DC 12 - 30 V) 2 x output -40 to +60 %u00b0C (-40 to +140 %u00b0F) 0 to 100 % RHTechnical DataTemperature measuring range -40 to +60 %u00b0C (-40 to +140 %u00b0F) %u00b11 K tolerance Humidity measuring range 0 to 100 % RH %u00b14 % RH tolerance1 Max. power consumption 1.8 W (typically 0.4 W)Max. reaction time 3 min.Load resistance (external) %u2264 500 %u03a9Max. power consumption 1.8 W (typically 0.4 W) Heater body aluminum profile, silver anodized Connection M12 round plug connector, IEC 61076-2-101, 4-pin, A-coded, shieldedElectrical protection Reverse-polarity, short circuit, overvoltage protectionMounting clip for 35 mm DIN rail, EN 60715 and screw fixing M5Fitting position vertical (connection on top) Dimensions 140 x 40 x 38 mm Weight approx. 50 gOperating / Storage temperature -40 to +70 %u00b0C (-40 to +158 %u00b0F) / -40 to +85 %u00b0C (-40 to +185 %u00b0F) Operating/Storage humidity max. 90% RH (non-condensing) Protection class / Protection type IP20 / III (SELV) Approvals VDE and UL File No. E500143 (acc. to IEC 61010-1/DIN EN 61010-1) %u00b9 Tolerance within 20 to 80 % RH (please request diagram for tolerances outside this range)
