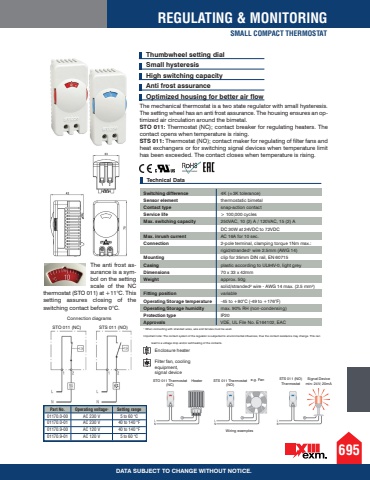

695REGULATING & MONITORINGSMALL COMPACT THERMOSTATDATA SUBJECT TO CHANGE WITHOUT NOTICE.Technical DataSwitching difference 4K (%u00b13K tolerance)Sensor element thermostatic bimetalContact type snap-action contactService life > 100,000 cycles Max. switching capacity 250VAC, 10 (2) A / 120VAC, 15 (2) A DC 30W at 24VDC to 72VDC Max. inrush current AC 16A for 10 sec.Connection 2-pole terminal, clamping torque 1Nm max.: rigid/stranded1 wire 2.5mm (AWG 14)Mounting clip for 35mm DIN rail, EN 60715 Casing plastic according to UL94V-0, light greyDimensions 70 x 33 x 42mmWeight approx. 50g solid/stranded%u00b2 wire - AWG 14 max. (2.5 mm%u00b2) Fitting position variableOperating/Storage temperature -45 to +80%u00b0C (-49 to +176%u00b0F)Operating/Storage humidity max. 90% RH (non-condensing)Protection type IP20Approvals VDE, UL File No. E164102, EAC%u00b9 When connecting with stranded wires, wire end ferrules must be used. Important note: The contact system of the regulator is subjected to environmental influences, thus the contact resistance may change. This can lead to a voltage drop and/or self-heating of the contacts.Thumbwheel setting dial Small hysteresis High switching capacity Anti frost assurance Optimized housing for better air flowThe mechanical thermostat is a two state regulator with small hysteresis. The setting wheel has an anti frost assurance. The housing ensures an optimized air circulation around the bimetal. STO 011: Thermostat (NC); contact breaker for regulating heaters. The contact opens when temperature is rising. STS 011: Thermostat (NO); contact maker for regulating of filter fans and heat exchangers or for switching signal devices when temperature limit has been exceeded. The contact closes when temperature is rising.STO 011 Thermostat (NC)Heater STS 011 Thermostat (NO)e.g. Fan STS 011 (NO) ThermostatSignal Device min: 24V; 20mAEnclosure heaterFilter fan, cooling equipment, signal devicePart No. Operating voltage3 Setting range01170.0-00 AC 230 V 5 to 60 %u00b0C01170.0-01 AC 230 V 40 to 140 %u00b0F01170.9-00 AC 120 V 40 to 140 %u00b0F01170.9-01 AC 120 V 5 to 60 %u00b0CThe anti frost assurance is a symbol on the setting scale of the NC thermostat (STO 011) at +11%u00b0C. This setting assures closing of the switching contact before 0%u00b0C.Wiring examplesConnection diagramsSTO 011 (NC) STS 011 (NO)
