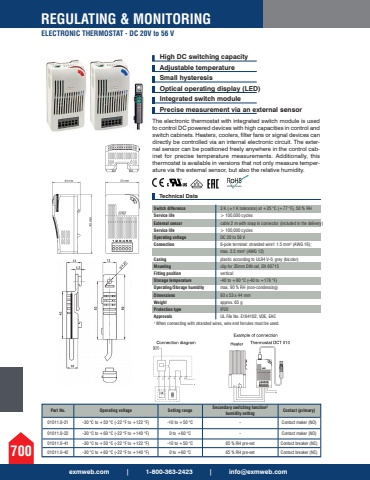

exmweb.com | 1-800-363-2423 | [email protected] & MONITORINGELECTRONIC THERMOSTAT - DC 20V to 56 V700Technical DataHigh DC switching capacity Adjustable temperature Small hysteresis Optical operating display (LED) Integrated switch module Precise measurement via an external sensorThe electronic thermostat with integrated switch module is used to control DC powered devices with high capacities in control and switch cabinets. Heaters, coolers, filter fans or signal devices can directly be controlled via an internal electronic circuit. The external sensor can be positioned freely anywhere in the control cabinet for precise temperature measurements. Additionally, this thermostat is available in versions that not only measure temperature via the external sensor, but also the relative humidity.Switch difference 3 K (%u00b11 K tolerance) at +25 %u00b0C (+77 %u00b0F), 50 % RHService life > 100,000 cyclesExternal sensor cable 2 m with snap in connector (included in the delivery)Service life > 100,000 cyclesOperating voltage DC 20 to 56 V Connection 6-pole terminal: stranded wire1 1.5 mm%u00b2 (AWG 16); max. 2.5 mm%u00b2 (AWG 12) Casing plastic according to UL94 V-0, grey (bicolor)Mounting clip for 35mm DIN rail, EN 60715Fitting position verticalStorage temperature -40 to +80 %u00b0C (-40 to +176 %u00b0F) Operating/Storage humidity max. 90 % RH (non-condensing) Dimensions 93 x 53 x 44 mm Weight approx. 65 g Protection type IP20 Approvals UL File No. E164102, VDE, EAC 1 When connecting with stranded wires, wire end ferrules must be used.Part No. Operating voltage Setting range Secondary switching function%u00b2 humidity setting Contact (primary)01011.0-21 -30 %u00b0C to +50 %u00b0C (-22 %u00b0F to +122 %u00b0F) -10 to +50 %u00b0C - Contact maker (NO)01011.0-22 -30 %u00b0C to +60 %u00b0C (-22 %u00b0F to +140 %u00b0F) 0 to +60 %u00b0C - Contact maker (NO)01011.0-41 -30 %u00b0C to +50 %u00b0C (-22 %u00b0F to +122 %u00b0F) -10 to +50 %u00b0C 65 % RH pre-set Contact breaker (NC)01011.0-42 -30 %u00b0C to +60 %u00b0C (-22 %u00b0F to +140 %u00b0F) 0 to +60 %u00b0C 65 % RH pre-set Contact breaker (NC)
