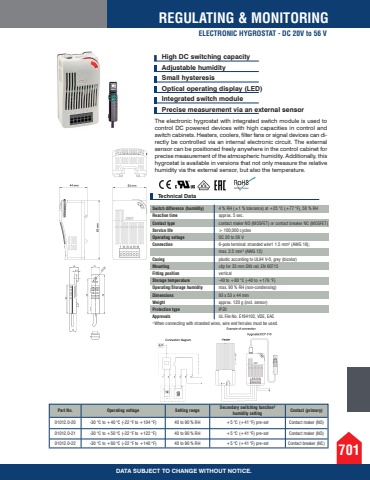

701DATA SUBJECT TO CHANGE WITHOUT NOTICE.REGULATING & MONITORINGHigh DC switching capacity Adjustable humidity Small hysteresis Optical operating display (LED) Integrated switch module Precise measurement via an external sensorThe electronic hygrostat with integrated switch module is used to control DC powered devices with high capacities in control and switch cabinets. Heaters, coolers, filter fans or signal devices can directly be controlled via an internal electronic circuit. The external sensor can be positioned freely anywhere in the control cabinet for precise measurement of the atmospheric humidity. Additionally, this hygrostat is available in versions that not only measure the relative humidity via the external sensor, but also the temperature. Part No. Operating voltage Setting range Secondary switching function%u00b2 humidity setting Contact (primary)01012.0-20 -30 %u00b0C to +40 %u00b0C (-22 %u00b0F to +104 %u00b0F) 40 to 90 % RH +5 %u00b0C (+41 %u00b0F) pre-set Contact maker (NO)01012.0-21 -30 %u00b0C to +50 %u00b0C (-22 %u00b0F to +122 %u00b0F) 40 to 90 % RH +5 %u00b0C (+41 %u00b0F) pre-set Contact maker (NO)01012.0-22 -30 %u00b0C to +60 %u00b0C (-22 %u00b0F to +140 %u00b0F) 40 to 90 % RH +5 %u00b0C (+41 %u00b0F) pre-set Contact breaker (NC)Technical DataSwitch difference (humidity) 4 % RH (%u00b11 % tolerance) at +25 %u00b0C (+77 %u00b0F), 50 % RH Reaction time approx. 5 sec.Contact type contact maker NO (MOSFET) or contact breaker NC (MOSFET)Service life > 100,000 cyclesOperating voltage DC 20 to 56 V Connection 6-pole terminal: stranded wire1 1.5 mm%u00b2 (AWG 16); max. 2.5 mm%u00b2 (AWG 12) Casing plastic according to UL94 V-0, grey (bicolor)Mounting clip for 35 mm DIN rail, EN 60715 Fitting position verticalStorage temperature -40 to +80 %u00b0C (-40 to +176 %u00b0F) Operating/Storage humidity max. 90 % RH (non-condensing) Dimensions 93 x 53 x 44 mm Weight approx. 120 g (incl. sensor) Protection type IP20 Approvals UL File No. E164102, VDE, EAC 1 When connecting with stranded wires, wire end ferrules must be used.ELECTRONIC HYGROSTAT - DC 20V to 56 V
