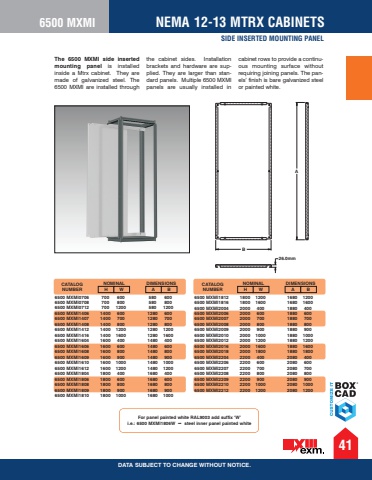

SIDE INSERTED MOUNTING PANEL6500 MXMI41NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.6500 MXMI0706 700 600 580 600 6500 MXMI0708 700 800 580 800 6500 MXMI0712 700 1200 580 1200 6500 MXMI1406 1400 600 1280 600 6500 MXMI1407 1400 700 1280 700 6500 MXMI1408 1400 800 1280 800 6500 MXMI1412 1400 1200 1280 1200 6500 MXMI1416 1400 1600 1280 1600 6500 MXMI1604 1600 400 1480 400 6500 MXMI1606 1600 600 1480 600 6500 MXMI1608 1600 800 1480 800 6500 MXMI1609 1600 900 1480 900 6500 MXMI1610 1600 1000 1480 1000 6500 MXMI1612 1600 1200 1480 1200 6500 MXMI1804 1800 400 1680 400 6500 MXMI1806 1800 600 1680 600 6500 MXMI1808 1800 800 1680 800 6500 MXMI1809 1800 900 1680 900 6500 MXMI1810 1800 1000 1680 1000 6500 MXMI1812 1800 1200 1680 1200 6500 MXMI1816 1800 1600 1680 1600 6500 MXMI2004 2000 400 1880 400 6500 MXMI2006 2000 600 1880 600 6500 MXMI2007 2000 700 1880 700 6500 MXMI2008 2000 800 1880 800 6500 MXMI2009 2000 900 1880 900 6500 MXMI2010 2000 1000 1880 1000 6500 MXMI2012 2000 1200 1880 1200 6500 MXMI2016 2000 1600 1880 1600 6500 MXMI2018 2000 1800 1880 1800 6500 MXMI2204 2200 400 2080 400 6500 MXMI2206 2200 600 2080 600 6500 MXMI2207 2200 700 2080 700 6500 MXMI2208 2200 800 2080 800 6500 MXMI2209 2200 900 2080 900 6500 MXMI2210 2200 1000 2080 1000 6500 MXMI2212 2200 1200 2080 1200 The 6500 MXMI side inserted mounting panel is installed inside a Mtrx cabinet. They are made of galvanized steel. The 6500 MXMI are installed through the cabinet sides. Installation brackets and hardware are supplied. They are larger than standard panels. Multiple 6500 MXMI panels are usually installed in cabinet rows to provide a continuous mounting surface without requiring joining panels. The panels%u2019 finish is bare galvanized steel or painted white.B26.0mmACATALOG NUMBERDIMENSIONSH W A BNOMINAL DIMENSIONSH W A BCATALOG NOMINALNUMBERFor panel painted white RAL9003 add suffix %u2018W%u2019 i.e.: 6500 MXMI1806W %uf0b0 steel inner panel painted white
