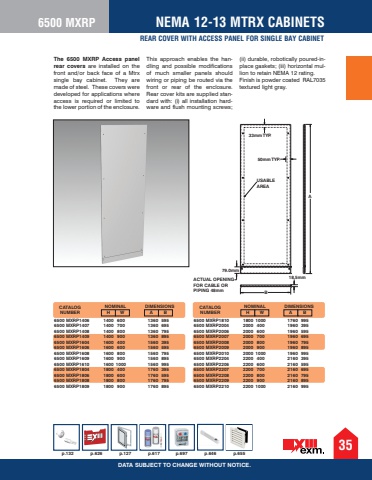

REAR COVER WITH ACCESS PANEL FOR SINGLE BAY CABINET6500 MXRP35NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXRP Access panel rear covers are installed on the front and/or back face of a Mtrx single bay cabinet. They are made of steel. These covers were developed for applications where access is required or limited to the lower portion of the enclosure. This approach enables the handling and possible modifications of much smaller panels should wiring or piping be routed via the front or rear of the enclosure. Rear cover kits are supplied standard with: (i) all installation hardware and flush mounting screws; (ii) durable, robotically poured-inplace gaskets; (iii) horizontal mullion to retain NEMA 12 rating.Finish is powder coated RAL7035textured light gray.18.5mm79.0mmABACTUAL OPENINGFOR CABLE ORPIPING 48mm33mmTYP.50mmTYP.USABLEAREAp.132 p.626 p.127 p.617 p.697 p.646 p.655CATALOG NUMBERDIMENSIONS6500 MXRP1406 1400 600 1360 5956500 MXRP1407 1400 700 1360 695 6500 MXRP1408 1400 800 1360 795 6500 MXRP1409 1400 900 1360 895 6500 MXRP1604 1600 400 1560 395 6500 MXRP1606 1600 600 1560 595 6500 MXRP1608 1600 800 1560 795 6500 MXRP1609 1600 900 1560 895 6500 MXRP1610 1600 1000 1560 995 6500 MXRP1804 1800 400 1760 395 6500 MXRP1806 1800 600 1760 595 6500 MXRP1808 1800 800 1760 795 6500 MXRP1809 1800 900 1760 895 6500 MXRP1810 1800 1000 1760 9956500 MXRP2004 2000 400 1960 3956500 MXRP2006 2000 600 1960 5956500 MXRP2007 2000 700 1960 6956500 MXRP2008 2000 800 1960 7956500 MXRP2009 2000 900 1960 8956500 MXRP2010 2000 1000 1960 9956500 MXRP2204 2200 400 2160 3956500 MXRP2206 2200 600 2160 5956500 MXRP2207 2200 700 2160 6956500 MXRP2208 2200 800 2160 7956500 MXRP2209 2200 900 2160 8956500 MXRP2210 2200 1000 2160 995H W A BNOMINAL CATALOG NUMBERDIMENSIONSH W A BNOMINAL
