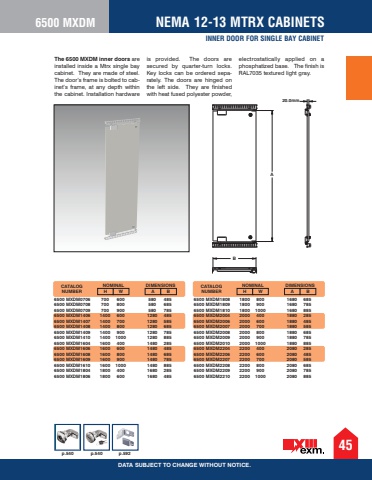

INNER DOOR FOR SINGLE BAY CABINET6500 MXDM45NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.BA20.0mm6500 MXDM0706 700 600 580 485 6500 MXDM0708 700 800 580 685 6500 MXDM0709 700 900 580 785 6500 MXDM1406 1400 600 1280 485 6500 MXDM1407 1400 700 1280 585 6500 MXDM1408 1400 800 1280 685 6500 MXDM1409 1400 900 1280 785 6500 MXDM1410 1400 1000 1280 885 6500 MXDM1604 1600 400 1480 285 6500 MXDM1606 1600 600 1480 485 6500 MXDM1608 1600 800 1480 685 6500 MXDM1609 1600 900 1480 785 6500 MXDM1610 1600 1000 1480 885 6500 MXDM1804 1800 400 1680 285 6500 MXDM1806 1800 600 1680 485 6500 MXDM1808 1800 800 1680 685 6500 MXDM1809 1800 900 1680 785 6500 MXDM1810 1800 1000 1680 885 6500 MXDM2004 2000 400 1880 285 6500 MXDM2006 2000 600 1880 485 6500 MXDM2007 2000 700 1880 585 6500 MXDM2008 2000 800 1880 685 6500 MXDM2009 2000 900 1880 785 6500 MXDM2010 2000 1000 1880 885 6500 MXDM2204 2200 400 2080 285 6500 MXDM2206 2200 600 2080 485 6500 MXDM2207 2200 700 2080 585 6500 MXDM2208 2200 800 2080 685 6500 MXDM2209 2200 900 2080 785 6500 MXDM2210 2200 1000 2080 885 CATALOG NUMBERDIMENSIONSH W A BNOMINAL DIMENSIONSH W A BCATALOG NOMINALNUMBERThe 6500 MXDM inner doors are installed inside a Mtrx single bay cabinet. They are made of steel. The door%u2019s frame is bolted to cabinet%u2019s frame, at any depth within the cabinet. Installation hardware is provided. The doors are secured by quarter-turn locks. Key locks can be ordered separately. The doors are hinged on the left side. They are finished with heat fused polyester powder, electrostatically applied on a phosphatized base. The finish is RAL7035 textured light gray.p.540 p.540 p.592
