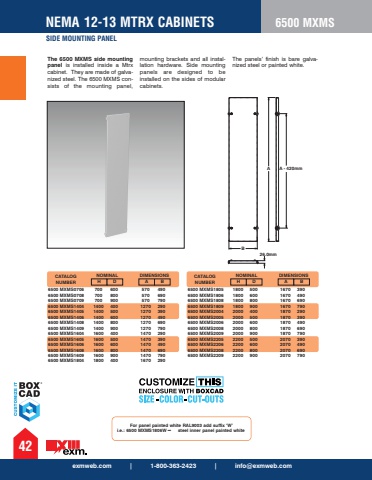

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSSIDE MOUNTING PANEL426500 MXMSThe 6500 MXMS side mounting panel is installed inside a Mtrx cabinet. They are made of galvanized steel. The 6500 MXMS consists of the mounting panel, mounting brackets and all installation hardware. Side mounting panels are designed to be installed on the sides of modular cabinets. The panels%u2019 finish is bare galvanized steel or painted white. A A - 420mmB26.0mm6500 MXMS0706 700 600 570 490 6500 MXMS0708 700 800 570 690 6500 MXMS0709 700 900 570 790 6500 MXMS1404 1400 400 1270 290 6500 MXMS1405 1400 500 1270 390 6500 MXMS1406 1400 600 1270 490 6500 MXMS1408 1400 800 1270 690 6500 MXMS1409 1400 900 1270 790 6500 MXMS1604 1600 400 1470 290 6500 MXMS1605 1600 500 1470 390 6500 MXMS1606 1600 600 1470 490 6500 MXMS1608 1600 800 1470 690 6500 MXMS1609 1600 900 1470 790 6500 MXMS1804 1800 400 1670 290 6500 MXMS1805 1800 500 1670 390 6500 MXMS1806 1800 600 1670 490 6500 MXMS1808 1800 800 1670 690 6500 MXMS1809 1800 900 1670 790 6500 MXMS2004 2000 400 1870 290 6500 MXMS2005 2000 500 1870 390 6500 MXMS2006 2000 600 1870 490 6500 MXMS2008 2000 800 1870 690 6500 MXMS2009 2000 900 1870 790 6500 MXMS2205 2200 500 2070 390 6500 MXMS2206 2200 600 2070 490 6500 MXMS2208 2200 800 2070 690 6500 MXMS2209 2200 900 2070 790CATALOG NUMBERDIMENSIONSH D A BNOMINAL DIMENSIONSH D A BCATALOG NOMINALNUMBERFor panel painted white RAL9003 add suffix %u2018W%u2019 i.e.: 6500 MXMS1806W %uf0b0 steel inner panel painted white
