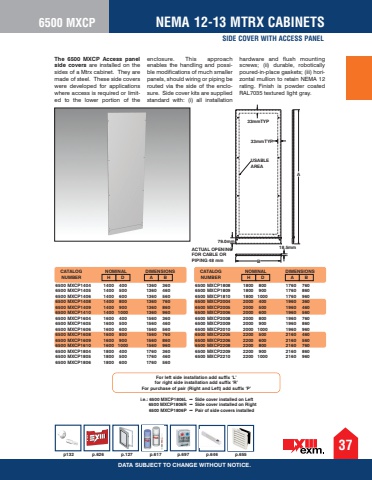

SIDE COVER WITH ACCESS PANEL6500 MXCP37NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.6500 MXCP1404 1400 400 1360 360 6500 MXCP1405 1400 500 1360 460 6500 MXCP1406 1400 600 1360 560 6500 MXCP1408 1400 800 1360 760 6500 MXCP1409 1400 900 1360 860 6500 MXCP1410 1400 1000 1360 960 6500 MXCP1604 1600 400 1560 360 6500 MXCP1605 1600 500 1560 460 6500 MXCP1606 1600 600 1560 560 6500 MXCP1608 1600 800 1560 760 6500 MXCP1609 1600 900 1560 860 6500 MXCP1610 1600 1000 1560 960 6500 MXCP1804 1800 400 1760 360 6500 MXCP1805 1800 500 1760 460 6500 MXCP1806 1800 600 1760 560 6500 MXCP1808 1800 800 1760 760 6500 MXCP1809 1800 900 1760 860 6500 MXCP1810 1800 1000 1760 960 6500 MXCP2004 2000 400 1960 360 6500 MXCP2005 2000 500 1960 460 6500 MXCP2006 2000 600 1960 560 6500 MXCP2008 2000 800 1960 760 6500 MXCP2009 2000 900 1960 860 6500 MXCP2010 2000 1000 1960 960 6500 MXCP2205 2200 500 2160 460 6500 MXCP2206 2200 600 2160 560 6500 MXCP2208 2200 800 2160 760 6500 MXCP2209 2200 900 2160 860 6500 MXCP2210 2200 1000 2160 96018.5mm79.0mmABACTUAL OPENINGFOR CABLE ORPIPING 48 mm33mmTYP.33mmTYP.USABLEAREACATALOG NUMBERDIMENSIONSH D A BNOMINAL CATALOG NUMBERDIMENSIONSH D A BNOMINALThe 6500 MXCP Access panel side covers are installed on the sides of a Mtrx cabinet. They are made of steel. These side covers were developed for applications where access is required or limited to the lower portion of the enclosure. This approach enables the handling and possible modifications of much smaller panels, should wiring or piping be routed via the side of the enclosure. Side cover kits are supplied standard with: (i) all installation hardware and flush mounting screws; (ii) durable, robotically poured-in-place gaskets; (iii) horizontal mullion to retain NEMA 12 rating. Finish is powder coated RAL7035 textured light gray. For left side installation add suffix %u2018L%u2019 for right side installation add suffix %u2018R%u2019 For purchase of pair (Right and Left) add suffix %u2018P%u2019i.e.: 6500 MXCP1806L %uf0b0 Side cover installed on Left 6500 MXCP1806R %uf0b0 Side cover installed on Right 6500 MXCP1806P %uf0b0 Pair of side covers installedp132 p.626 p.127 p.617 p.697 p.646 p.655
