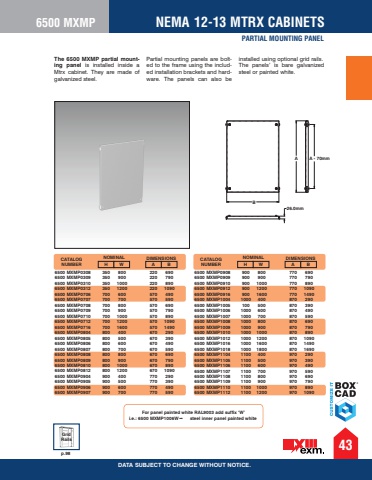

PARTIAL MOUNTING PANEL6500 MXMP43NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXMP partial mounting panel is installed inside a Mtrx cabinet. They are made of galvanized steel. Partial mounting panels are bolted to the frame using the included installation brackets and hardware. The panels can also be installed using optional grid rails. The panels%u2019 is bare galvanized steel or painted white.A A - 70mmB26.0mm6500 MXMP0908 900 800 770 690 6500 MXMP0909 900 900 770 790 6500 MXMP0910 900 1000 770 890 6500 MXMP0912 900 1200 770 1090 6500 MXMP0916 900 1600 770 1490 6500 MXMP1004 1000 400 870 290 6500 MXMP1005 100 500 870 390 6500 MXMP1006 1000 600 870 490 6500 MXMP1007 1000 700 870 590 6500 MXMP1008 1000 800 870 690 6500 MXMP1009 1000 900 870 790 6500 MXMP1010 1000 1000 870 890 6500 MXMP1012 1000 1200 870 1090 6500 MXMP1016 1000 1600 870 1490 6500 MXMP1018 1000 1800 870 1690 6500 MXMP1104 1100 400 970 290 6500 MXMP1105 1100 500 970 390 6500 MXMP1106 1100 600 970 490 6500 MXMP1107 1100 700 970 590 6500 MXMP1108 1100 800 970 690 6500 MXMP1109 1100 900 970 790 6500 MXMP1110 1100 1000 970 890 6500 MXMP1112 1100 1200 970 1090 CATALOG NUMBERDIMENSIONSH W A BNOMINAL DIMENSIONSH W A BCATALOG NOMINALNUMBERFor panel painted white RAL9003 add suffix %u2018W%u2019 i.e.: 6500 MXMP1006W %uf0b0 steel inner panel painted white6500 MXMP0308 350 800 220 690 6500 MXMP0309 350 900 220 790 6500 MXMP0310 350 1000 220 890 6500 MXMP0312 350 1200 220 1090 6500 MXMP0706 700 600 570 490 6500 MXMP0707 700 700 570 590 6500 MXMP0708 700 800 570 690 6500 MXMP0709 700 900 570 790 6500 MXMP0710 700 1000 570 890 6500 MXMP0712 700 1200 570 1090 6500 MXMP0716 700 1600 570 1490 6500 MXMP0804 800 400 670 290 6500 MXMP0805 800 500 670 390 6500 MXMP0806 800 600 670 490 6500 MXMP0807 800 700 670 590 6500 MXMP0808 800 800 670 690 6500 MXMP0809 800 900 670 790 6500 MXMP0810 800 1000 670 890 6500 MXMP0812 800 1200 670 1090 6500 MXMP0904 900 400 770 290 6500 MXMP0905 900 500 770 390 6500 MXMP0906 900 600 770 490 6500 MXMP0907 900 700 770 590 p.98GridRails
