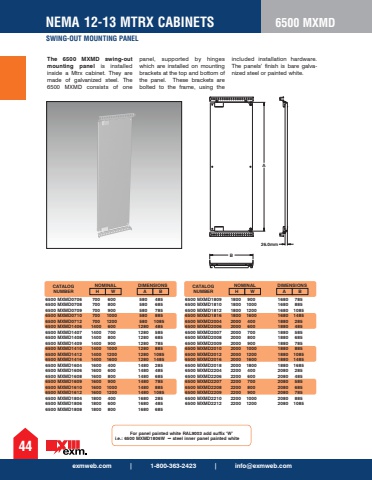

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSSWING-OUT MOUNTING PANEL446500 MXMDThe 6500 MXMD swing-out mounting panel is installed inside a Mtrx cabinet. They are made of galvanized steel. The 6500 MXMD consists of one panel, supported by hinges which are installed on mounting brackets at the top and bottom of the panel. These brackets are bolted to the frame, using the included installation hardware. The panels%u2019 finish is bare galvanized steel or painted white.BA26.0mm6500 MXMD0706 700 600 580 485 6500 MXMD0708 700 800 580 685 6500 MXMD0709 700 900 580 785 6500 MXMD0710 700 1000 580 885 6500 MXMD0712 700 1200 580 1085 6500 MXMD1406 1400 600 1280 485 6500 MXMD1407 1400 700 1280 585 6500 MXMD1408 1400 800 1280 685 6500 MXMD1409 1400 900 1280 785 6500 MXMD1410 1400 1000 1280 885 6500 MXMD1412 1400 1200 1280 1085 6500 MXMD1416 1400 1600 1280 1485 6500 MXMD1604 1600 400 1480 285 6500 MXMD1606 1600 600 1480 485 6500 MXMD1608 1600 800 1480 685 6500 MXMD1609 1600 900 1480 785 6500 MXMD1610 1600 1000 1480 885 6500 MXMD1612 1600 1200 1480 1085 6500 MXMD1804 1800 400 1680 285 6500 MXMD1806 1800 600 1680 485 6500 MXMD1808 1800 800 1680 685 6500 MXMD1809 1800 900 1680 785 6500 MXMD1810 1800 1000 1680 885 6500 MXMD1812 1800 1200 1680 1085 6500 MXMD1816 1800 1600 1680 1485 6500 MXMD2004 2000 400 1880 285 6500 MXMD2006 2000 600 1880 485 6500 MXMD2007 2000 700 1880 585 6500 MXMD2008 2000 800 1880 685 6500 MXMD2009 2000 900 1880 785 6500 MXMD2010 2000 1000 1880 885 6500 MXMD2012 2000 1200 1880 1085 6500 MXMD2016 2000 1600 1880 1485 6500 MXMD2018 2000 1800 1880 1685 6500 MXMD2204 2200 400 2080 285 6500 MXMD2206 2200 600 2080 485 6500 MXMD2207 2200 700 2080 585 6500 MXMD2208 2200 800 2080 685 6500 MXMD2209 2200 900 2080 785 6500 MXMD2210 2200 1000 2080 885 6500 MXMD2212 2200 1200 2080 1085 CATALOG NUMBERDIMENSIONSH W A BNOMINAL DIMENSIONSH W A BCATALOG NOMINALNUMBERFor panel painted white RAL9003 add suffix %u2018W%u2019 i.e.: 6500 MXMD1806W %uf0b0 steel inner panel painted white
