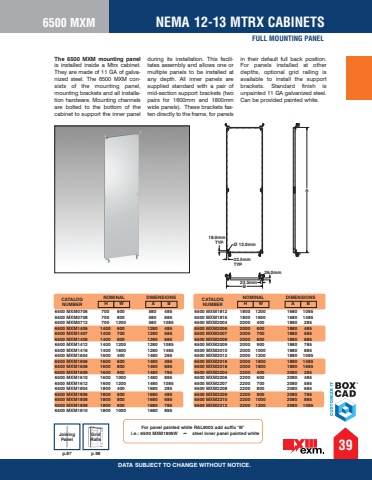

FULL MOUNTING PANEL6500 MXM39NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.6500 MXM0706 700 600 580 485 6500 MXM0708 700 800 580 685 6500 MXM0712 700 1200 580 1085 6500 MXM1406 1400 600 1280 485 6500 MXM1407 1400 700 1280 585 6500 MXM1408 1400 800 1280 685 6500 MXM1412 1400 1200 1280 1085 6500 MXM1416 1400 1600 1280 1485 6500 MXM1604 1600 400 1480 285 6500 MXM1606 1600 600 1480 485 6500 MXM1608 1600 800 1480 685 6500 MXM1609 1600 900 1480 785 6500 MXM1610 1600 1000 1480 8856500 MXM1612 1600 1200 1480 1085 6500 MXM1804 1800 400 1680 285 6500 MXM1806 1800 600 1680 485 6500 MXM1808 1800 800 1680 685 6500 MXM1809 1800 900 1680 785 6500 MXM1810 1800 1000 1680 885 6500 MXM1812 1800 1200 1680 1085 6500 MXM1816 1800 1600 1680 1485 6500 MXM2004 2000 400 1880 285 6500 MXM2006 2000 600 1880 485 6500 MXM2007 2000 700 1880 585 6500 MXM2008 2000 800 1880 685 6500 MXM2009 2000 900 1880 785 6500 MXM2010 2000 1000 1880 885 6500 MXM2012 2000 1200 1880 1085 6500 MXM2016 2000 1600 1880 1485 6500 MXM2018 2000 1800 1880 1685 6500 MXM2204 2200 400 2080 285 6500 MXM2206 2200 600 2080 485 6500 MXM2207 2200 700 2080 585 6500 MXM2208 2200 800 2080 685 6500 MXM2209 2200 900 2080 785 6500 MXM2210 2200 1000 2080 885 6500 MXM2212 2200 1200 2080 1085 18.0mmTYP.22.5mmTYP.%u00d8 12.0mmBA26.0mm23.5mmCATALOG NUMBERDIMENSIONSH W A BNOMINAL DIMENSIONSH W A BCATALOG NOMINALNUMBERThe 6500 MXM mounting panel is installed inside a Mtrx cabinet. They are made of 11 GA of galvanized steel. The 6500 MXM consists of the mounting panel, mounting brackets and all installation hardware. Mounting channels are bolted to the bottom of the cabinet to support the inner panel during its installation. This facilitates assembly and allows one or multiple panels to be installed at any depth. All inner panels are supplied standard with a pair of mid-section support brackets (two pairs for 1600mm and 1800mm wide panels). These brackets fasten directly to the frame, for panels in their default full back position. For panels installed at other depths, optional grid railing is available to install the support brackets. Standard finish is unpainted 11 GA galvanized steel. Can be provided painted white. For panel painted white RAL9003 add suffix %u2018W%u2019 i.e.: 6500 MXM1806W %uf0b0 steel inner panel painted whitep.87 p.98Grid RailsJoining Panel
