Page 72 - Demo

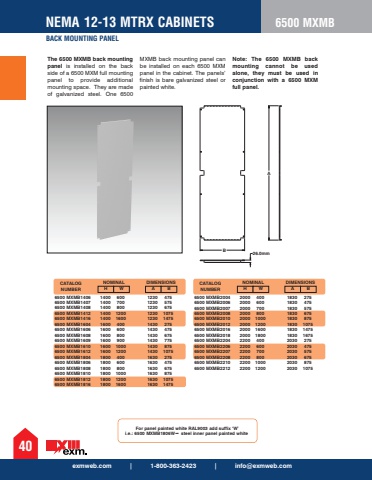

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSBACK MOUNTING PANEL406500 MXMB6500 MXMB1406 1400 600 1230 475 6500 MXMB1407 1400 700 1230 575 6500 MXMB1408 1400 800 1230 675 6500 MXMB1412 1400 1200 1230 1075 6500 MXMB1416 1400 1600 1230 1475 6500 MXMB1604 1600 400 1430 275 6500 MXMB1606 1600 600 1430 475 6500 MXMB1608 1600 800 1430 675 6500 MXMB1609 1600 900 1430 775 6500 MXMB1610 1600 1000 1430 875 6500 MXMB1612 1600 1200 1430 1075 6500 MXMB1804 1800 400 1630 275 6500 MXMB1806 1800 600 1630 475 6500 MXMB1808 1800 800 1630 675 6500 MXMB1810 1800 1000 1630 875 6500 MXMB1812 1800 1200 1630 1075 6500 MXMB1816 1800 1600 1630 1475 6500 MXMB2004 2000 400 1830 275 6500 MXMB2006 2000 600 1830 475 6500 MXMB2007 2000 700 1830 575 6500 MXMB2008 2000 800 1830 675 6500 MXMB2010 2000 1000 1830 875 6500 MXMB2012 2000 1200 1830 1075 6500 MXMB2016 2000 1600 1830 1475 6500 MXMB2018 2000 1800 1830 1675 6500 MXMB2204 2200 400 2030 275 6500 MXMB2206 2200 600 2030 475 6500 MXMB2207 2200 700 2030 575 6500 MXMB2208 2200 800 2030 675 6500 MXMB2210 2200 1000 2030 875 6500 MXMB2212 2200 1200 2030 1075 The 6500 MXMB back mounting panel is installed on the back side of a 6500 MXM full mounting panel to provide additional mounting space. They are made of galvanized steel. One 6500 MXMB back mounting panel can be installed on each 6500 MXM panel in the cabinet. The panels%u2019 finish is bare galvanized steel or painted white. Note: The 6500 MXMB back mounting cannot be used alone, they must be used in conjunction with a 6500 MXM full panel.26.0mmBACATALOG NUMBERDIMENSIONSH W A BNOMINAL DIMENSIONSH W A BCATALOG NOMINALNUMBERFor panel painted white RAL9003 add suffix %u2018W%u2019 i.e.: 6500 MXMB1806W%uf0b0 steel inner panel painted white
