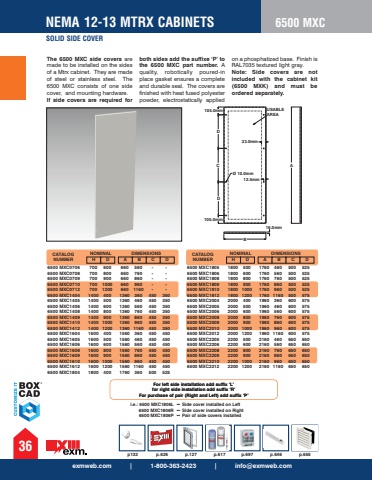

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSSOLID SIDE COVER366500 MXC6500 MXC0706 700 600 660 560 - - 6500 MXC0708 700 800 660 760 - - 6500 MXC0709 700 900 660 860 - - 6500 MXC0710 700 1000 660 960 - - 6500 MXC0712 700 1200 660 1160 - - 6500 MXC1404 1400 400 1360 360 450 350 6500 MXC1405 1400 500 1360 460 450 350 6500 MXC1406 1400 600 1360 560 450 350 6500 MXC1408 1400 800 1360 760 450 350 6500 MXC1409 1400 900 1360 860 450 350 6500 MXC1410 1400 1000 1360 960 450 350 6500 MXC1412 1400 1200 1360 1160 450 350 6500 MXC1604 1600 400 1560 360 450 450 6500 MXC1605 1600 500 1560 460 450 450 6500 MXC1606 1600 600 1560 560 450 450 6500 MXC1608 1600 800 1560 760 450 450 6500 MXC1609 1600 900 1560 860 450 450 6500 MXC1610 1600 1000 1560 960 450 450 6500 MXC1612 1600 1200 1560 1160 450 450 6500 MXC1804 1800 400 1760 360 500 525 6500 MXC1805 1800 500 1760 460 500 525 6500 MXC1806 1800 600 1760 560 500 525 6500 MXC1808 1800 800 1760 760 500 525 6500 MXC1809 1800 900 1760 860 500 525 6500 MXC1810 1800 1000 1760 960 500 525 6500 MXC1812 1800 1200 1760 1160 500 575 6500 MXC2004 2000 400 1960 360 600 575 6500 MXC2005 2000 500 1960 460 600 575 6500 MXC2006 2000 600 1960 560 600 575 6500 MXC2008 2000 800 1960 760 600 575 6500 MXC2009 2000 900 1960 860 600 575 6500 MXC2010 2000 1000 1960 960 600 575 6500 MXC2012 2000 1200 1960 1160 600 575 6500 MXC2205 2200 500 2160 460 650 650 6500 MXC2206 2200 600 2160 560 650 650 6500 MXC2208 2200 800 2160 760 650 650 6500 MXC2209 2200 900 2160 860 650 650 6500 MXC2210 2200 1000 2160 960 650 650 6500 MXC2212 2200 1200 2160 1160 650 650 12.5mm33.0mmUSABLEAREA16.0mmB105.0mmDCD105.0mmA%u00d8 10.0mmCATALOG NUMBERDIMENSIONSH D A B C DNOMINAL CATALOG NUMBERDIMENSIONSH D A B C DNOMINALFor left side installation add suffix %u2018L%u2019 for right side installation add suffix %u2018R%u2019 For purchase of pair (Right and Left) add suffix %u2018P%u2019p132 p.626 p.127 p.617 p.697 p.646 p.655i.e.: 6500 MXC1806L %uf0b0 Side cover installed on Left 6500 MXC1806R %uf0b0 Side cover installed on Right 6500 MXC1806P %uf0b0 Pair of side covers installedThe 6500 MXC side covers are made to be installed on the sides of a Mtrx cabinet. They are made of steel or stainless steel. The 6500 MXC consists of one side cover, and mounting hardware. If side covers are required for both sides add the suffixe %u2018P%u2019 to the 6500 MXC part number. A quality, robotically poured-in place gasket ensures a complete and durable seal. The covers are finished with heat fused polyester powder, electrostatically applied on a phosphatized base. Finish is RAL7035 textured light gray. Note: Side covers are not included with the cabinet kit (6500 MXK) and must be ordered separately.For left side installation add suffix %u2018L%u2019 for right side installation add suffix %u2018R%u2019 For purchase of pair (Right and Left) add suffix %u2018P%u2019
