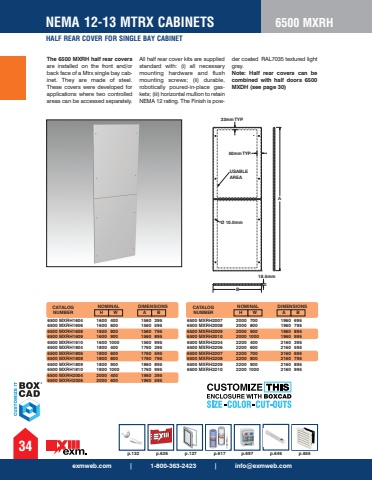

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSHALF REAR COVER FOR SINGLE BAY CABINET346500 MXRH18.5mmBA%u00d8 10.0mm33mmTYP.50mmTYP.USABLEAREACATALOG NUMBERDIMENSIONS6500 MXRH1604 1600 400 1560 395 6500 MXRH1606 1600 600 1560 595 6500 MXRH1608 1600 800 1560 795 6500 MXRH1609 1600 900 1560 895 6500 MXRH1610 1600 1000 1560 995 6500 MXRH1804 1800 400 1760 395 6500 MXRH1806 1800 600 1760 595 6500 MXRH1808 1800 800 1760 795 6500 MXRH1809 1800 900 1860 895 6500 MXRH1810 1800 1000 1760 995 6500 MXRH2004 2000 400 1960 395 6500 MXRH2006 2000 600 1960 595 6500 MXRH2007 2000 700 1960 695 6500 MXRH2008 2000 800 1960 795 6500 MXRH2009 2000 900 1960 895 6500 MXRH2010 2000 1000 1960 995 6500 MXRH2204 2200 400 2160 395 6500 MXRH2206 2200 600 2160 595 6500 MXRH2207 2200 700 2160 695 6500 MXRH2208 2200 800 2160 795 6500 MXRH2209 2200 900 2160 895 6500 MXRH2210 2200 1000 2160 995H W A BNOMINAL CATALOG NUMBERp.132 p.626 p.127 p.617 p.697 p.646 p.655The 6500 MXRH half rear covers are installed on the front and/or back face of a Mtrx single bay cabinet. They are made of steel. These covers were developed for applications where two controlled areas can be accessed separately. All half rear cover kits are supplied standard with: (i) all necessary mounting hardware and flush mounting screws; (ii) durable, robotically poured-in-place gaskets; (iii) horizontal mullion to retain NEMA 12 rating. The Finish is powder coated RAL7035 textured light gray. Note: Half rear covers can be combined with half doors 6500 MXDH (see page 30) DIMENSIONSH W A BNOMINAL
