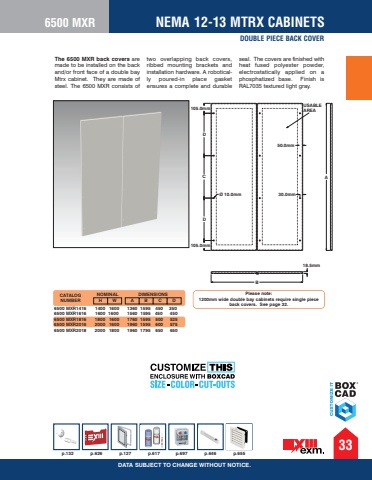

DOUBLE PIECE BACK COVER6500 MXR33NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXR back covers are made to be installed on the back and/or front face of a double bay Mtrx cabinet. They are made of steel. The 6500 MXR consists of two overlapping back covers, ribbed mounting brackets and installation hardware. A robotically poured-in place gasket ensures a complete and durable seal. The covers are finished with heat fused polyester powder, electrostatically applied on a phosphatized base. Finish is RAL7035 textured light gray.USABLEAREA50.0mm%u00d8 10.0mm 30.0mm105.0mm18.5mmBDCD105.0mmA6500 MXR1416 1400 1600 1360 1595 450 350 6500 MXR1616 1600 1600 1560 1595 450 450 6500 MXR1816 1800 1600 1760 1595 500 525 6500 MXR2016 2000 1600 1960 1595 600 575 6500 MXR2018 2000 1800 1960 1795 650 650 Please note: 1200mm wide double bay cabinets require single piece back covers. See page 32.CATALOG NUMBERDIMENSIONSH W A B C DNOMINALp.132 p.626 p.127 p.617 p.697 p.646 p.655
