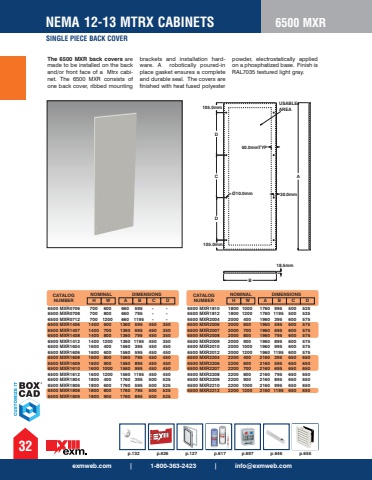

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSSINGLE PIECE BACK COVER326500 MXRThe 6500 MXR back covers are made to be installed on the back and/or front face of a Mtrx cabinet. The 6500 MXR consists of one back cover, ribbed mounting brackets and installation hardware. A robotically poured-in place gasket ensures a complete and durable seal. The covers are finished with heat fused polyester powder, electrostatically applied on a phosphatized base. Finish is RAL7035 textured light gray.30.0mm50.0mmTYPUSABLEAREA18.5mmB105.0mmDCD105.0mmA%u00d810.0mmCATALOG NUMBERDIMENSIONS6500 MXR0706 700 600 660 595 - -6500 MXR0708 700 800 660 795 - - 6500 MXR0712 700 1200 660 1195 - - 6500 MXR1406 1400 600 1360 595 450 350 6500 MXR1407 1400 700 1360 695 450 350 6500 MXR1408 1400 800 1360 795 450 350 6500 MXR1412 1400 1200 1360 1195 450 350 6500 MXR1604 1600 400 1560 395 450 450 6500 MXR1606 1600 600 1560 595 450 450 6500 MXR1608 1600 800 1560 795 450 450 6500 MXR1609 1600 900 1560 895 450 450 6500 MXR1610 1600 1000 1560 995 450 450 6500 MXR1612 1600 1200 1560 1195 450 450 6500 MXR1804 1800 400 1760 395 500 525 6500 MXR1806 1800 600 1760 595 500 525 6500 MXR1808 1800 800 1760 795 500 525 6500 MXR1809 1800 900 1760 895 500 525 6500 MXR1810 1800 1000 1760 995 500 525 6500 MXR1812 1800 1200 1760 1195 500 525 6500 MXR2004 2000 400 1960 395 600 575 6500 MXR2006 2000 600 1960 595 600 575 6500 MXR2007 2000 700 1960 695 600 575 6500 MXR2008 2000 800 1960 795 600 575 6500 MXR2009 2000 900 1960 895 600 575 6500 MXR2010 2000 1000 1960 995 600 575 6500 MXR2012 2000 1200 1960 1195 600 575 6500 MXR2204 2200 400 2160 395 650 650 6500 MXR2206 2200 600 2160 595 650 650 6500 MXR2207 2200 700 2160 695 650 650 6500 MXR2208 2200 800 2160 795 650 650 6500 MXR2209 2200 900 2160 895 650 650 6500 MXR2210 2200 1000 2160 995 650 650 6500 MXR2212 2200 1200 2160 1195 650 650H W A B C DNOMINAL CATALOG NUMBERDIMENSIONSH W A B C DNOMINALp.132 p.626 p.127 p.617 p.697 p.646 p.655
