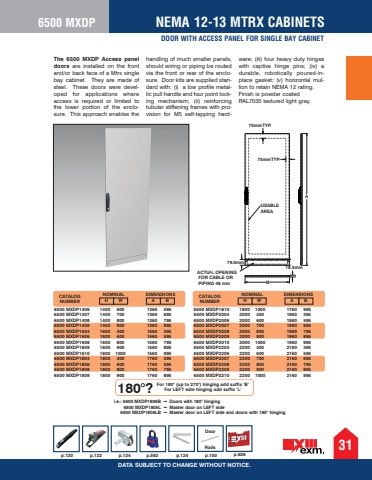

DOOR WITH ACCESS PANEL FOR SINGLE BAY CABINET6500 MXDP31NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.18.5mm79.0mmBAACTUAL OPENINGFOR CABLE ORPIPING 48 mm75mmTYP.75mmTYP.USABLEAREADIMENSIONS6500 MXDP1406 1400 600 1360 595 6500 MXDP1407 1400 700 1360 695 6500 MXDP1408 1400 800 1360 795 6500 MXDP1409 1400 900 1360 895 6500 MXDP1604 1600 400 1560 395 6500 MXDP1606 1600 600 1560 595 6500 MXDP1608 1600 800 1560 795 6500 MXDP1609 1600 900 1560 895 6500 MXDP1610 1600 1000 1560 995 6500 MXDP1804 1800 400 1760 395 6500 MXDP1806 1800 600 1760 595 6500 MXDP1808 1800 800 1760 795 6500 MXDP1809 1800 900 1760 895 6500 MXDP1810 1800 1000 1760 995 6500 MXDP2004 2000 400 1960 395 6500 MXDP2006 2000 600 1960 595 6500 MXDP2007 2000 700 1960 695 6500 MXDP2008 2000 800 1960 795 6500 MXDP2009 2000 900 1960 895 6500 MXDP2010 2000 1000 1960 995 6500 MXDP2204 2200 400 2160 395 6500 MXDP2206 2200 600 2160 595 6500 MXDP2207 2200 700 2160 695 6500 MXDP2208 2200 800 2160 795 6500 MXDP2209 2200 900 2160 895 6500 MXDP2210 2200 1000 2160 995H W A BNOMINAL DIMENSIONSH W A BNOMINAL CATALOG NUMBERCATALOG NUMBERp.122 p.124 p.592 p.124 p.100 p.626Door RailsThe 6500 MXDP Access panel doors are installed on the front and/or back face of a Mtrx single bay cabinet. They are made of steel. These doors were developed for applications where access is required or limited to the lower portion of the enclosure. This approach enables the handling of much smaller panels, should wiring or piping be routed via the front or rear of the enclosure. Door kits are supplied standard with: (i) a low profile metallic pull handle and four point locking mechanism; (ii) reinforcing tubular stiffening frames with provision for M5 self-tapping hardware; (iii) four heavy duty hinges with captive hinge pins; (iv) a durable, robotically poured-inplace gasket; (v) horizontal mullion to retain NEMA 12 rating. Finish is powder coated RAL7035 textured light gray. For 180%u00b0 (up to 270%u00b0) hinging add suffix %u2018B%u2019 For LEFT side hinging add suffix %u2018L%u2019i.e.: 6500 MXDP1806B %uf0b0 Doors with 180%u00b0 hinging 6500 MXDP1806L %uf0b0 Master door on LEFT side 6500 MXDP1806LB %uf0b0 Master door on LEFT side and doors with 180%u00b0 hinging180%u00b0?p.120
