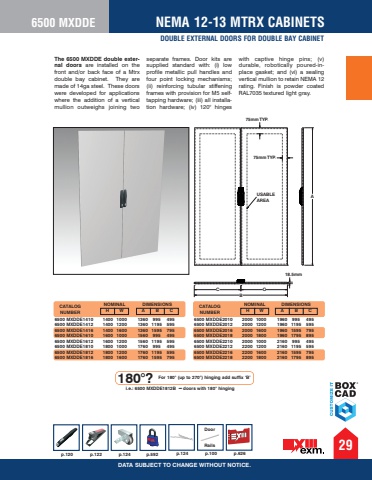

6500 MXDDE29NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXDDE double external doors are installed on the front and/or back face of a Mtrx double bay cabinet. They are made of 14ga steel. These doors were developed for applications where the addition of a vertical mullion outweighs joining two separate frames. Door kits are supplied standard with: (i) low profile metallic pull handles and four point locking mechanisms; (ii) reinforcing tubular stiffeningframes with provision for M5 selftapping hardware; (iii) all installation hardware; (iv) 120%u00b0 hingeswith captive hinge pins; (v) durable, robotically poured-inplace gasket; and (vi) a sealing vertical mullion to retain NEMA 12 rating. Finish is powder coated RAL7035 textured light gray.18.5mmC CBA75mmTYP.75mmTYP.USABLEAREADIMENSIONS6500 MXDDE1410 1400 1000 1360 995 495 6500 MXDDE1412 1400 1200 1360 1195 595 6500 MXDDE1416 1400 1600 1360 1595 795 6500 MXDDE1610 1600 1000 1560 995 495 6500 MXDDE1612 1600 1200 1560 1195 595 6500 MXDDE1810 1800 1000 1760 995 495 6500 MXDDE1812 1800 1200 1760 1195 595 6500 MXDDE1816 1800 1600 1760 1595 795 6500 MXDDE2010 2000 1000 1960 995 495 6500 MXDDE2012 2000 1200 1960 1195 595 6500 MXDDE2016 2000 1600 1960 1595 795 6500 MXDDE2018 2000 1800 1960 1795 895 6500 MXDDE2210 2000 1000 2160 995 495 6500 MXDDE2212 2200 1200 2160 1195 595 6500 MXDDE2216 2200 1600 2160 1595 795 6500 MXDDE2218 2200 1800 2160 1795 895H W A B CNOMINAL DIMENSIONSH W A B CCATALOG NOMINALNUMBERCATALOG NUMBERp.122 p.124 p.592 p.124 p.100 p.626Door RailsFor 180%u00b0 (up to 270%u00b0) hinging add suffix %u2018B%u2019 i.e.: 6500 MXDDE1812B %uf0b0 doors with 180%u00b0 hinging180%u00b0?p.120DOUBLE EXTERNAL DOORS FOR DOUBLE BAY CABINET
