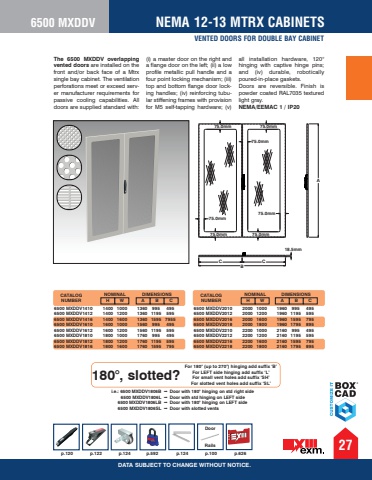

VENTED DOORS FOR DOUBLE BAY CABINET6500 MXDDV27NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXDDV overlapping vented doors are installed on the front and/or back face of a Mtrx single bay cabinet. The ventilation perforations meet or exceed server manufacturer requirements for passive cooling capabilities. All doors are supplied standard with: (i) a master door on the right and a flange door on the left; (ii) a low profile metallic pull handle and a four point locking mechanism; (iii) top and bottom flange door locking handles; (iv) reinforcing tubular stiffening frames with provision for M5 self-tapping hardware; (v) all installation hardware, 120%u00b0 hinging with captive hinge pins; and (iv) durable, robotically poured-in-place gaskets. Doors are reversible. Finish is powder coated RAL7035 textured light gray. NEMA/EEMAC 1 / IP2075.0mm 75.0mm75.0mm75.0mm75.0mm75.0mm 75.0mm18.5mmAC CB6500 MXDDV1410 1400 1000 1360 995 495 6500 MXDDV1412 1400 1200 1360 1195 595 6500 MXDDV1416 1400 1600 1360 1595 7955 6500 MXDDV1610 1600 1000 1560 995 495 6500 MXDDV1612 1600 1200 1560 1195 595 6500 MXDDV1810 1800 1000 1760 995 495 6500 MXDDV1812 1800 1200 1760 1195 595 6500 MXDDV1816 1800 1600 1760 1595 795 CATALOG NUMBER6500 MXDDV2010 2000 1000 1960 995 495 6500 MXDDV2012 2000 1200 1960 1195 595 6500 MXDDV2016 2000 1600 1960 1595 795 6500 MXDDV2018 2000 1800 1960 1795 895 6500 MXDDV2210 2200 1000 2160 995 495 6500 MXDDV2212 2200 1200 2160 1195 595 6500 MXDDV2216 2200 1600 2160 1595 795 6500 MXDDV2218 2200 1800 2160 1795 895 CATALOG NUMBERDIMENSIONSH W A B CNOMINAL DIMENSIONSH W A B CNOMINALp.122 p.124 p.592 p.124 p.100Door Railsp.626For 180%u00b0 (up to 270%u00b0) hinging add suffix %u2018B%u2019 For LEFT side hinging add suffix %u2018L%u2019 For small vent holes add suffix %u2018SH%u2019 For slotted vent holes add suffix %u2018SL%u2019 180%u00b0, slotted?i.e.: 6500 MXDDV1806B %uf0b0 Door with 180%u00b0 hinging on std right side 6500 MXDDV1806L %uf0b0 Door with std hinging on LEFT side 6500 MXDDV1806LB %uf0b0 Door with 180%u00b0 hinging on LEFT side 6500 MXDDV1806SL %uf0b0 Door with slotted vents p.120
