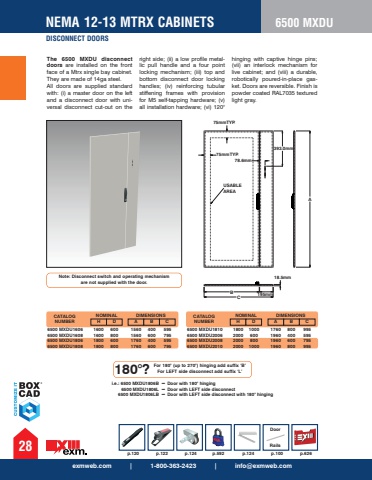

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETS286500 MXDU75mmTYP.75mmTYP.USABLEAREABC 195mm18.5mmA393.0mm78.6mmCATALOG NUMBER6500 MXDU1606 1600 600 1560 400 595 6500 MXDU1608 1600 800 1560 600 795 6500 MXDU1806 1800 600 1760 400 595 6500 MXDU1808 1800 800 1760 600 795 CATALOG NUMBER6500 MXDU1810 1800 1000 1760 800 995 6500 MXDU2006 2000 600 1960 400 595 6500 MXDU2008 2000 800 1960 600 795 6500 MXDU2010 2000 1000 1960 800 995DIMENSIONSH D A BNOMINALH DNOMINALThe 6500 MXDU disconnect doors are installed on the front face of a Mtrx single bay cabinet. They are made of 14ga steel. All doors are supplied standard with: (i) a master door on the left and a disconnect door with universal disconnect cut-out on the right side; (ii) a low profile metallic pull handle and a four point locking mechanism; (iii) top and bottom disconnect door locking handles; (iv) reinforcing tubular stiffening frames with provision for M5 self-tapping hardware; (v) all installation hardware; (vi) 120%u00b0 hinging with captive hinge pins; (vii) an interlock mechanism for live cabinet; and (viii) a durable, robotically poured-in-place gasket. Doors are reversible. Finish is powder coated RAL7035 textured light gray. Note: Disconnect switch and operating mechanism are not supplied with the door.p.122 p.124 p.592 p.124 p.100 p.626Door RailsFor 180%u00b0 (up to 270%u00b0) hinging add suffix %u2018B%u2019 For LEFT side disconnect add suffix %u2018L%u2019i.e.: 6500 MXDU1806B %uf0b0 Door with 180%u00b0 hinging 6500 MXDU1806L %uf0b0 Door with LEFT side disconnect 6500 MXDU1806LB %uf0b0 Door with LEFT side disconnect with 180%u00b0 hinging CDIMENSIONSA B C180%u00b0?p.120DISCONNECT DOORS
