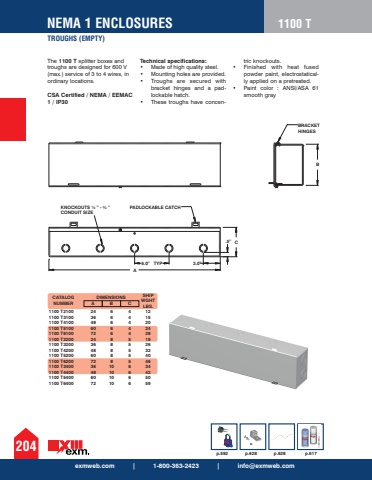

exmweb.com | 1-800-363-2423 | [email protected] Tp.592 p.628 p.628 p.617NEMA 1 ENCLOSURESThe 1100 T splitter boxes and troughs are designed for 600 V (max.) service of 3 to 4 wires, in ordinary locations. CSA Certified / NEMA / EEMAC 1 / IP30 Technical specifications:%u2022 Made of high quality steel. %u2022 Mounting holes are provided. %u2022 Troughs are secured with bracket hinges and a padlockable hatch. %u2022 These troughs have concentric knockouts. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated. %u2022 Paint color : ANSI/ASA 61 smooth grayPADLOCKABLE CATCHBRACKETHINGESBACKNOCKOUTS %u00bd %u201d - %u00be %u201dCONDUIT SIZE6.0%u201d TYP.5%u201d3.0%u201dTROUGHS (EMPTY)1100 T2100 24 6 4 12 1100 T3100 36 6 4 15 1100 T4100 48 6 4 20 1100 T5100 60 6 4 24 1100 T6100 72 6 4 28 1100 T2200 24 8 5 19 1100 T3200 36 8 5 26 1100 T4200 48 8 5 32 1100 T5200 60 8 5 40 1100 T6200 72 8 5 46 1100 T3400 36 10 6 34 1100 T4400 48 10 6 42 1100 T5400 60 10 6 50 1100 T6400 72 10 6 59 CATALOG NUMBER A B CDIMENSIONS SHIP WGHT LBS.
