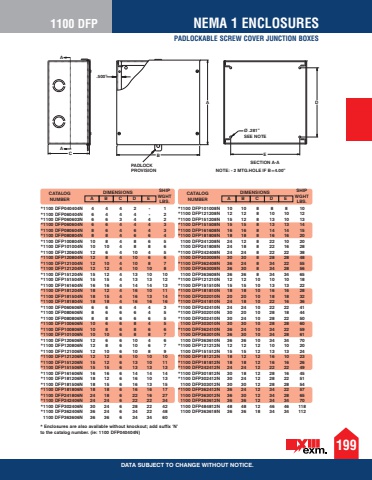

199DATA SUBJECT TO CHANGE WITHOUT NOTICE.1100 DFP NEMA 1 ENCLOSURESAASECTION A-AABDE%u00d8 .281%u201dSEE NOTENOTE: - 2 MTG.HOLE IF B=4.00%u201dPADLOCKPROVISION.500%u201dCPADLOCKABLE SCREW COVER JUNCTION BOXES*1100 DFP040404N 4 4 4 2 - 1*1100 DFP060404N 6 4 4 4 - 2*1100 DFP060603N 6 6 3 4 4 2*1100 DFP060604N 6 6 4 4 4 3*1100 DFP080604N 8 6 4 6 4 3*1100 DFP080804N 8 8 4 6 6 4*1100 DFP100804N 10 8 4 8 6 5*1100 DFP101004N 10 10 4 8 8 6*1100 DFP120604N 12 6 4 10 4 5*1100 DFP120804N 12 8 4 10 6 6*1100 DFP121004N 12 10 4 10 8 7*1100 DFP121204N 12 12 4 10 10 8*1100 DFP151204N 15 12 4 13 10 10*1100 DFP151504N 15 15 4 13 13 12*1100 DFP161604N 16 16 4 14 14 13*1100 DFP181204N 18 12 4 16 10 11*1100 DFP181504N 18 15 4 16 13 14*1100 DFP181804N 18 18 4 16 16 16*1100 DFP060606N 6 6 6 4 4 3*1100 DFP080606N 8 6 6 6 4 5*1100 DFP080806N 8 8 6 6 6 5*1100 DFP100606N 10 6 6 8 4 5*1100 DFP100806N 10 8 6 8 6 6*1100 DFP101006N 10 10 6 8 8 7*1100 DFP120606N 12 6 6 10 4 6*1100 DFP120806N 12 8 6 10 6 7*1100 DFP121006N 12 10 6 10 8 9*1100 DFP121206N 12 12 6 10 10 10*1100 DFP151206N 15 12 6 13 10 11*1100 DFP151506N 15 15 6 13 13 13*1100 DFP161606N 16 16 6 14 14 14*1100 DFP181206N 18 12 6 16 10 13*1100 DFP181506N 18 15 6 16 13 15*1100 DFP181806N 18 18 6 16 16 17*1100 DFP241806N 24 18 6 22 16 27*1100 DFP242406N 24 24 6 22 22 34*1100 DFP302406N 30 24 6 28 22 42*1100 DFP362406N 36 24 6 34 22 481100 DFP363606N 36 36 6 34 34 60*1100 DFP101008N 10 10 8 8 8 10*1100 DFP121208N 12 12 8 10 10 12*1100 DFP151208N 15 12 8 13 10 13*1100 DFP151508N 15 15 8 13 13 14*1100 DFP161608N 16 16 8 14 14 15*1100 DFP181808N 18 18 8 16 16 201100 DFP241208N 24 12 8 22 10 201100 DFP241808N 24 18 8 22 16 28*1100 DFP242408N 24 24 8 22 22 381100 DFP303008N 30 30 8 28 28 48*1100 DFP362408N 36 24 8 34 22 551100 DFP363008N 36 30 8 34 28 561100 DFP363608N 36 36 8 34 34 65*1100 DFP121210N 12 12 10 10 10 18*1100 DFP151510N 15 15 10 13 13 22*1100 DFP181810N 18 18 10 16 16 28*1100 DFP202010N 20 20 10 18 18 32*1100 DFP241810N 24 18 10 22 16 36*1100 DFP242410N 24 24 10 22 22 41*1100 DFP302010N 30 20 10 28 18 44*1100 DFP302410N 30 24 10 28 22 501100 DFP303010N 30 30 10 28 28 60*1100 DPF362410N 36 24 10 34 22 591100 DFP363010N 36 30 10 34 28 611100 DFP363610N 36 36 10 34 34 70*1100 DFP121212N 12 12 12 10 10 201100 DFP151512N 15 15 12 13 13 24*1100 DFP181212N 18 12 12 16 10 23*1100 DFP181812N 18 18 12 16 16 26*1100 DFP242412N 24 24 12 22 22 49*1100 DFP301812N 30 18 12 28 16 45*1100 DFP302412N 30 24 12 28 22 511100 DFP303012N 30 30 12 28 28 54*1100 DFP362412N 36 24 12 34 22 571100 DFP363012N 36 30 12 34 28 651100 DFP363612N 36 36 12 34 34 701100 DFP484812N 48 48 12 46 46 1181100 DFP363618N 36 36 18 34 34 112 CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.* Enclosures are also available without knockout; add suffix %u2018N%u2019to the catalog number. (ie: 1100 DFP040404N)
