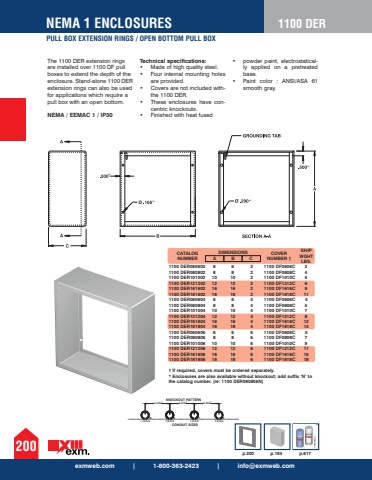

exmweb.com | 1-800-363-2423 | [email protected] 1 ENCLOSURES 1100 DERPULL BOX EXTENSION RINGS / OPEN BOTTOM PULL BOXThe 1100 DER extension rings are installed over 1100 DF pull boxes to extend the depth of the enclosure. Stand-alone 1100 DER extension rings can also be used for applications which require a pull box with an open bottom. NEMA / EEMAC 1 / IP30 Technical specifications:%u2022 Made of high quality steel. %u2022 Four internal mounting holes are provided. %u2022 Covers are not included withthe 1100 DER. %u2022 These enclosures have concentric knockouts. %u2022 Finished with heat fused %u2022 powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray.%u201d%u201d%u201d%u201d3.375%u201dW X Y Z3.375%u201d 3.375%u201d KNOCKOUT PATTERNCONDUIT SIZES1/2-3/4 1/2-3/4 1/2-3/4 1/2-3/4p.200 p.194 p.6171100 DER060602 6 6 2 1100 DF0606C 2 1100 DER080802 8 8 2 1100 DF0808C 4 1100 DER101002 10 10 2 1100 DF1010C 5 1100 DER121202 12 12 2 1100 DF1212C 6 1100 DER161602 16 16 2 1100 DF1616C 9 1100 DER181802 18 18 2 1100 DF1818C 111100 DER060604 6 6 4 1100 DF0606C 4 1100 DER080804 8 8 4 1100 DF0808C 5 1100 DER101004 10 10 4 1100 DF1010C 7 1100 DER121204 12 12 4 1100 DF1212C 8 1100 DER161604 16 16 4 1100 DF1616C 121100 DER181804 18 18 4 1100 DF1818C 141100 DER060606 6 6 6 1100 DF0606C 5 1100 DER080806 8 8 6 1100 DF0808C 7 1100 DER101006 10 10 6 1100 DF1010C 9 1100 DER121206 12 12 6 1100 DF1212C 111100 DER161606 16 16 6 1100 DF1616C 151100 DER181806 18 18 6 1100 DF1818C 18 %u2020 If required, covers must be ordered separately. * Enclosures are also available without knockout; add suffix %u2018N%u2019 to the catalog number. (ie: 1100 DER080806N)CATALOG NUMBER A B CDIMENSIONS SHIP WGHT LBS.COVER NUMBER %u2020
