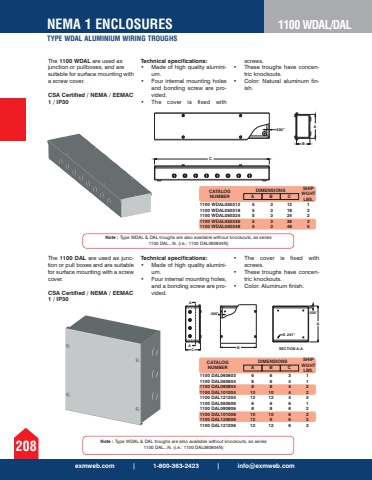

exmweb.com | 1-800-363-2423 | [email protected] WDAL/DALThe 1100 WDAL are used as junction or pullboxes, and are suitable for surface mounting with a screw cover. CSA Certified / NEMA / EEMAC 1 / IP30 Technical specifications:%u2022 Made of high quality aluminium.%u2022 Four internal mounting holesand bonding screw are provided.%u2022 The cover is fixed withscrews. %u2022 These troughs have concentric knockouts.%u2022 Color: Natural aluminum finish.The 1100 DAL are used as junction or pull boxes and are suitable for surface mounting with a screw cover. CSA Certified / NEMA / EEMAC 1 / IP30 Technical specifications:%u2022 Made of high quality aluminium.%u2022 Four internal mounting holes,and a bonding screw are provided.%u2022 The cover is fixed withscrews.%u2022 These troughs have concentric knockouts.%u2022 Color: Aluminum finish.A.500%u201d%u00d8 .281%u201dB SECTION A-A.500%u201dAACCA.500%u201dBNEMA 1 ENCLOSURESTYPE WDAL ALUMINIUM WIRING TROUGHSCATALOG NUMBER A B CDIMENSIONS SHIP WGHT LBS.1100 WDAL050312 5 3 12 11100 WDAL050318 5 3 18 21100 WDAL050324 5 3 24 21100 WDAL050336 5 3 36 31100 WDAL050348 5 3 48 5CATALOG NUMBER A B CDIMENSIONS SHIP WGHT LBS.1100 DAL060603 6 6 3 11100 DAL060604 6 6 4 11100 DAL080804 8 8 4 21100 DAL101004 10 10 4 21100 DAL121204 12 12 4 31100 DAL060606 6 6 6 11100 DAL080806 8 8 6 21100 DAL101006 10 10 6 21100 DAL120606 12 6 6 21100 DAL121206 12 12 6 3Note : Type WDAL & DAL troughs are also available without knockouts, as series 1100 DAL...N. (i.e.: 1100 DAL080804N)Note : Type WDAL & DAL troughs are also available without knockouts, as series 1100 DAL...N. (i.e.: 1100 DAL080804N)
